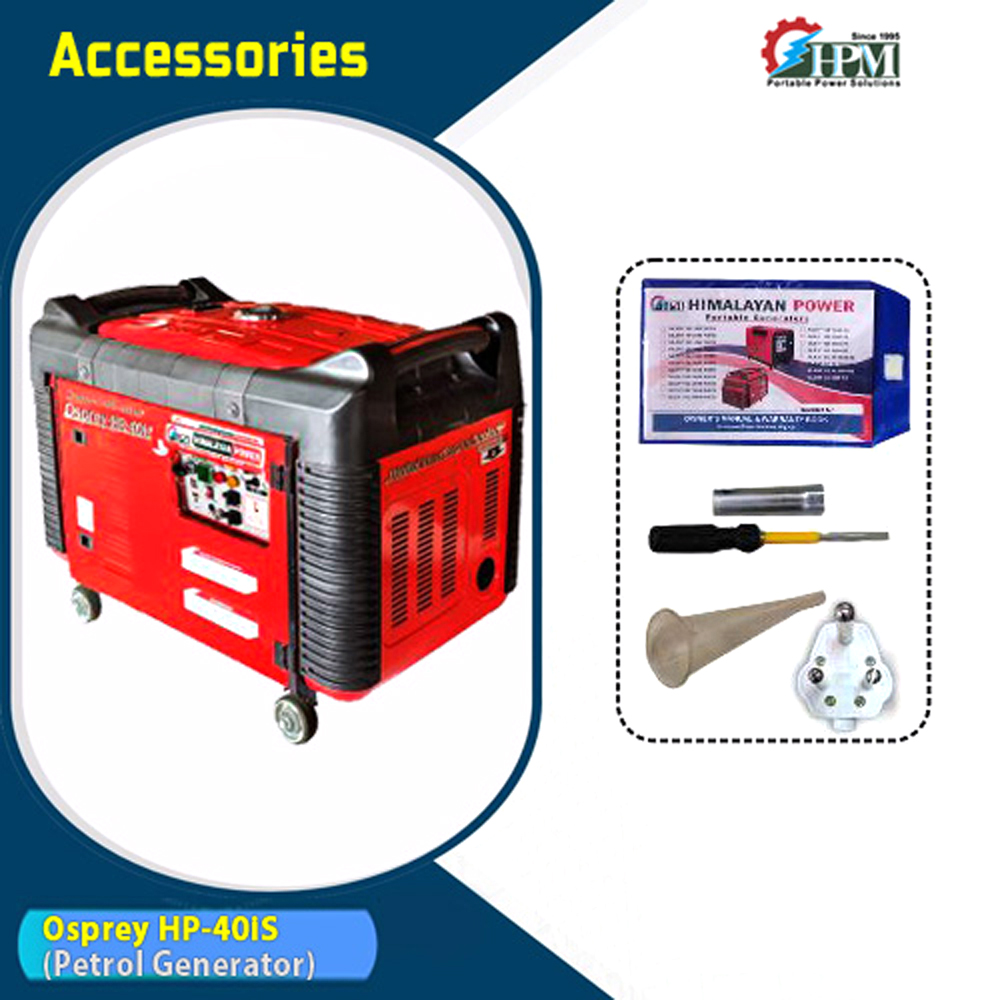

4 KVA Portable Silent Inverter Generator , Model Osprey HP-40is (Delex) with Remote and lpg

4 KVA Portable Silent Inverter Generator , Model Osprey HP-40is (Delex) with Remote and lpg

Document

( 0 Reviews )

₹ 114696.00 (incl Of all taxes)

₹ 97200 + 18 % Gst + Delivery to pay

~~₹ 120000~~

4% off

In Stock

About This Product

*Max AC Output VA : 4000
*Rated AC Output VA : 3800
DC Output : 5V-20V DC Panel
QC : 3.0 USB Port
PD : 3.0 Type C USB
12V DC - DC 5521 (1 Ports)

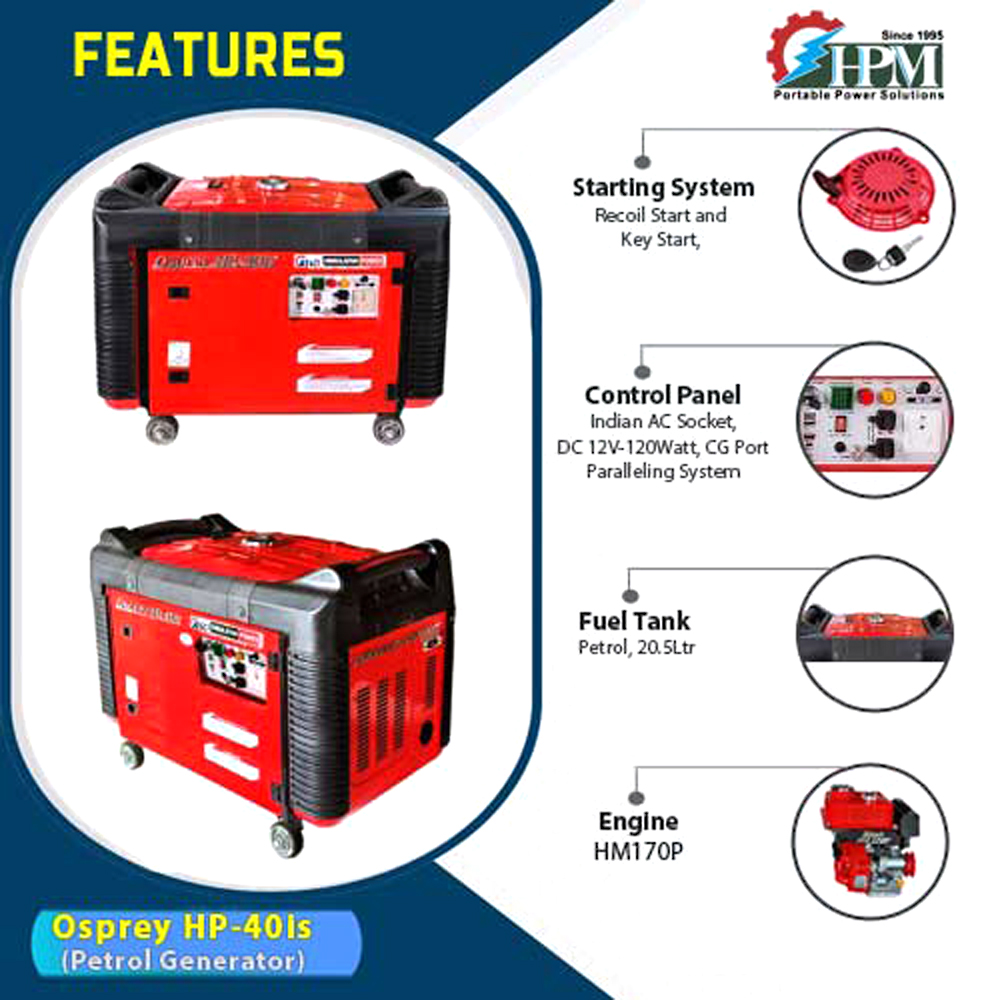

Starting System : Recoil & Self Start
Fuel Consumption : Petrol 1.3 Ltr/Hr / LPG: 750gm. Approx.
Run time : 16Hr Approx.
Pure Sine Wave
Paralleling AC Output : 6KVA (2 x Osprey HP-40i)
Fuel Tank Capacity : 20 Ltr.

Special Highlight :

4 KVA Genset, Ultra-Light Weight, Digital Inverter Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%.
To get more Power to Run Heavy Equipment, 2 or More HP 30i Generator can be made to Run In Parallel, Two HP30i Generators in Parallel will produce 4 KVA + 4 KVA = 6KVA Power.

Application :

Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in remote Areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, For charging Inverters, for all types of Frequency & Voltage sensitive Equipments, Military & Powering Defense Equipments, etc.

This Premium product is the Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is a more than 35 years old company that offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Category: GENERATORS

Easy Return & Refund

Quality Assurance

Trusted Delivery

After Sales Assistance

Buyer Protection

Description
Reviews (0)

*Max AC Output VA : 4000
*Rated AC Output VA : 3800
Rated Current Amps : 16.5
NFB Amps : 17
AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
Inverter : 100 KHz, IGBT Based Digital Inverter – 3 Kw

DC Outputs

DC 12 V – 120-Watt, CG Port
Continuous Output Current : 10 A (Max. 120 Watt)
12V DC Output Over Load Current Protection : Yes >10 A (Disconnected Load Recovery)
DC Output Short-Circuit Protection : Yes (Disconnect Load Recovery)

*Max AC Output VA : 4000
*Rated AC Output VA : 3800
Rated Current Amps : 16.5
NFB Amps : 17
AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
Inverter : 100 KHz, IGBT Based Digital Inverter – 3 Kw

DC Outputs

DC 12 V – 120-Watt, CG Port
Continuous Output Current : 10 A (Max. 120 Watt)
12V DC Output Over Load Current Protection : Yes >10 A (Disconnected Load Recovery)
DC Output Short-Circuit Protection : Yes (Disconnect Load Recovery)
DC Outputs - 5V to 20 V & DC Ports USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
USB Output Fast Charging QC 3.0 (3) : 1* 5V - 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
Type - C USB (4) : 1* 'C' Type - 1* USB C PD 2.0 (30W) 5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A

Engine

Model : HM170P
Type : OHV25°Inclined, Single Cylinder, 4 Strokes, S.I, Forced Air Cooling
Maximum Power : 6.5 HP @ 3600
Bore x Stroke : 70x58 mm
Displacement : 223 cc
Starting System : Recoil Start + Self Start
Governor : Electronic Governor (Load Sensitive – Variable Speed) Engine RPM 2200 (No Load) to 3800 RPM (at Full load)
Fuel : Petrol + LPG (Optional)
Fuel Tank Capacity : Petrol 20.5 Ltr.
Fuel Consumption : Approx. Petrol 1.5 ltr/hr, LPG : 850gm/hr.
Lube Oil Capacity : 600 ml.
Lubricating Oil Consumption : 2.5 gm/Hr.
Sound level (dB) (from 1 meter) : <86dB (as per CBCP - II Norms)

Panel & Other Standard Features

Multifunction Digital Meter & Indicator : Digital Console (V, Hz, Amp)
Oil Alert System : Yes
Over Load Indicator : Yes
2 Genset Paralleling Capability : Yes, Red & Black Pair of Sockets Provided in Control Panel for Paralleling of 2 Generators
LPG/ Gas Fuel Compatibility : Yes
AMF Panel Auto & Remote Start Compatibility : Yes (Optional)
Fuel Level Gauge : Yes
AC On /Off, Overload Protection (NFB) : Yes
Electronic Overload Protection : Yes, Inbuilt with Inverter
Costar Wheels : Yes

Packing

Weight Appprox (Kg) : 71.5 KG
Dimension LxWxH (mm) : 785 mm X 520 mm X 608 mm
Battery Specification : 12 Volt 9 Ah Size

Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation.
