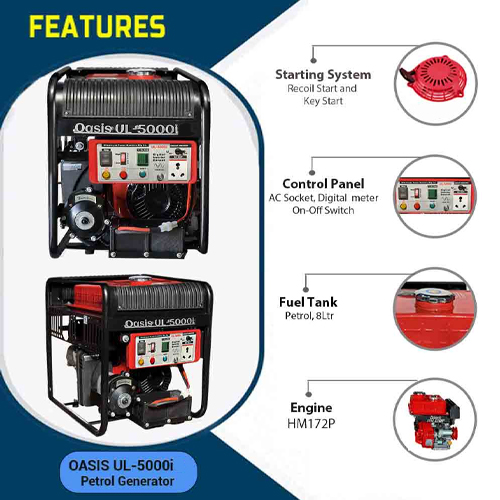

5 KVA Smart Portable Digital Inverter Generator,Oasis UL-5000i,Recoil Start
₹ 49206.00 (incl Of all taxes)
₹ 41700 + 18 % Gst + Delivery to pay
₹ 58018
In Stock
About This Product
Max AC. Output VA- 5500
Rated AC. Output VA- 4800
Fuel - Petrol + LPG (Optional)
Starting System - Recoil Start
Fuel Consumption - Approx. Petrol 1.5 ltr/hr, LPG: 850gm./hr.
Special Highlight :
- 5 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
- Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%
- To get more Power to Run Heavy Equipment, 2 or More HP 50is Generator can be made to Run In Parallel, Two HP50is Generators in Parallel will produce 5 KVA + 5 KVA = 10 KVA Power
Application :
- Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, For charging Inverters, Air Conditioners & all Modern House Hold Appliances including all types of Frequency & Voltage sensitive Equipment’s, Military & Powering Defense Equipment’s Etc.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
- *Max AC. Output VA : 5500
- *Rated AC. Output VA : 4800
- Rated Current Amps : 20.8
- NFB Amps : 19
- AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
- Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
- Invertor : 100 KHz, IGBT Based Digital Invertor – 5 Kw
Engine
- Model : HM170P4
- Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
- Maximum Power :&n... Show More
- *Max AC. Output VA : 5500
- *Rated AC. Output VA : 4800
- Rated Current Amps : 20.8
- NFB Amps : 19
- AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
- Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
- Invertor : 100 KHz, IGBT Based Digital Invertor – 5 Kw
Engine
- Model : HM170P4
- Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
- Maximum Power : 7.5 HP @ 3600
- Bore x Stroke : 70x58 mm
- Displacement : 223 cc
- Starting System : Recoil Start
- Governor : Electronic Governor (Load Sensitive – Variable Speed)Engine RPM 2500 (No Load) to 4200 RPM (at Full load)
- Fuel : Petrol + LPG (Optional)
- Fuel Tank Capacity : Petrol -20.5 Ltr.
- Fuel Consumption : Approx. Petrol 1.5 ltr/hr, LPG: 850gm./hr.
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5 gm./Hr.
- Sound level (Db) (from 1 meter) : <86Db (as per CBCP - II Norms)
Panel & Other Standard Features
- Multifunction Digital Meter & Indicator : Digital Console (V, Hz, Amp)
- Oil Alert System : Yes
- Over Load Indicator : Yes
- 2 Genset Paralleling Capability : Yes, Red & Black Pair of Sockets Provided in Control Panel for Paralleling of 2 Generators
- LPG/ Gas Fuel Compatibility : Yes
- AMF Panel Auto & Remote Start Compatibility : Yes (Optional)
- Fuel Level Gauge : Yes
- AC On /Off, Overload Protection (NFB) : Yes
- Electronic Over Load Protection : Yes, Inbuilt with Inverter
- Costar Wheels : Yes
Packing
- Weight Appprox (Kg) : 34 KG
- Dimension LxWxH (mm) : 532 mm X 415 mm X 515 mm
Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. These specifications can change without any prior intimation.
Show Less
This 5 kva generator works perfectly for my requirement. The generator manages all these (like ac, motor, lights other load) together smoothly without overloading, noice level in reasonable, and fuel consumption is also good compared to other mod
