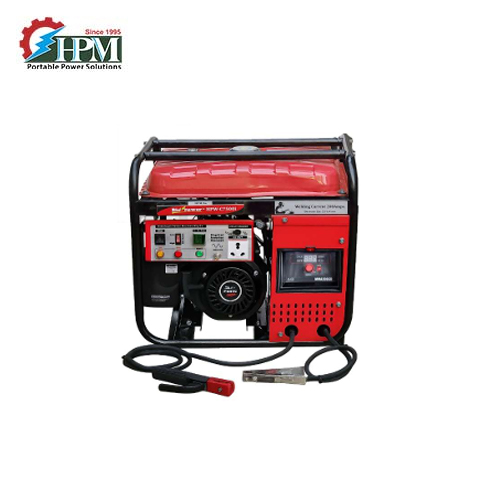

200 Amps, 5.5 KVA AC Welding Generator, HPW C7500i
₹ 128999.96 (incl Of all taxes)
₹ 109322 + 18 % Gst + Delivery to pay
₹ 135000
In Stock
About This Product
- *Max AC. Output VA : 5500
- *Rated AC. Output VA : 5000
- Electrode Dia.: 2.6 mm to 4.0 mm
- Starting System : Recoil Start
- Fuel Consumption: Petrol: 1.5 Ltr./hr.
- Run time : 15 Hrs.
Special Highlight:
- Most suitable for Low , Medium & High Current DC Welding of thin Sheets, Arc Welding (MMA) on MS Sheets / Parts.
- AC Generator 5.5 KVA , AC 230 V, 50 Hz Output for Running AC Appliances
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
- Maximum Output (Duty Cycle 60%) : 200 Amps.
- Working Voltazge : 20v to 30 v
- Open Circuit Voltage : 50 ± 5 Volts
- Current Regulation Amps : 50 ± 5 Volts
- Rectifying Mode : PWM Inverter (Buck)Technology
- Maximum Electrode diameter : 2.6 mm to 4.0 mm
Engine
- Model : HM172 Pi
- Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
- Maximum Power (Duty Cycle 60%) : 9 HP @ 3600
- Bore x Stroke : 72x58 mm
- Displacement : 240cc
- Starting System : Recoil Start
- FuelShow More
- Maximum Output (Duty Cycle 60%) : 200 Amps.
- Working Voltazge : 20v to 30 v
- Open Circuit Voltage : 50 ± 5 Volts
- Current Regulation Amps : 50 ± 5 Volts
- Rectifying Mode : PWM Inverter (Buck)Technology
- Maximum Electrode diameter : 2.6 mm to 4.0 mm
Engine
- Model : HM172 Pi
- Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
- Maximum Power (Duty Cycle 60%) : 9 HP @ 3600
- Bore x Stroke : 72x58 mm
- Displacement : 240cc
- Starting System : Recoil Start
- Fuel : Petrol
- Fuel Tank Capacity : Petrol - 21.0 Ltr.
- Fuel Consumption # Ltr./Hr : Petrol: 1.5 Ltr./hr.
- Continuous Operating Hour : 15 Hrs.
- Lube. Oil Capacity : 600ml
- Lubricating Oil Consumption : 2.5 gm./Hr.
- Sound level (Db) (from 1 meter) : <86Db
Standard Accessories
- AC Plug : 1Pec.
- Tool Kit : 1 Set
- Welder Holder : 1 Set
- Earthing Clamp with 3Mtr. Cable : 1 Set
- Oil Funnel : 1 No.
- Owner’s Manual : 1 No.
Panel & Other Standard Features
- Digital Display : Yes,Volt,Hz,Amp.Meter
- Oil Alert System : Yes
- Fuel Level Gauge : Yes
- Overload Protection (NFB) : Yes
- Costar Wheels & Handle Sets : No
Size & Weight
- Dry Weight (Kgs.) : 45kg
- Dimension LxWxH (mm) :
Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation
