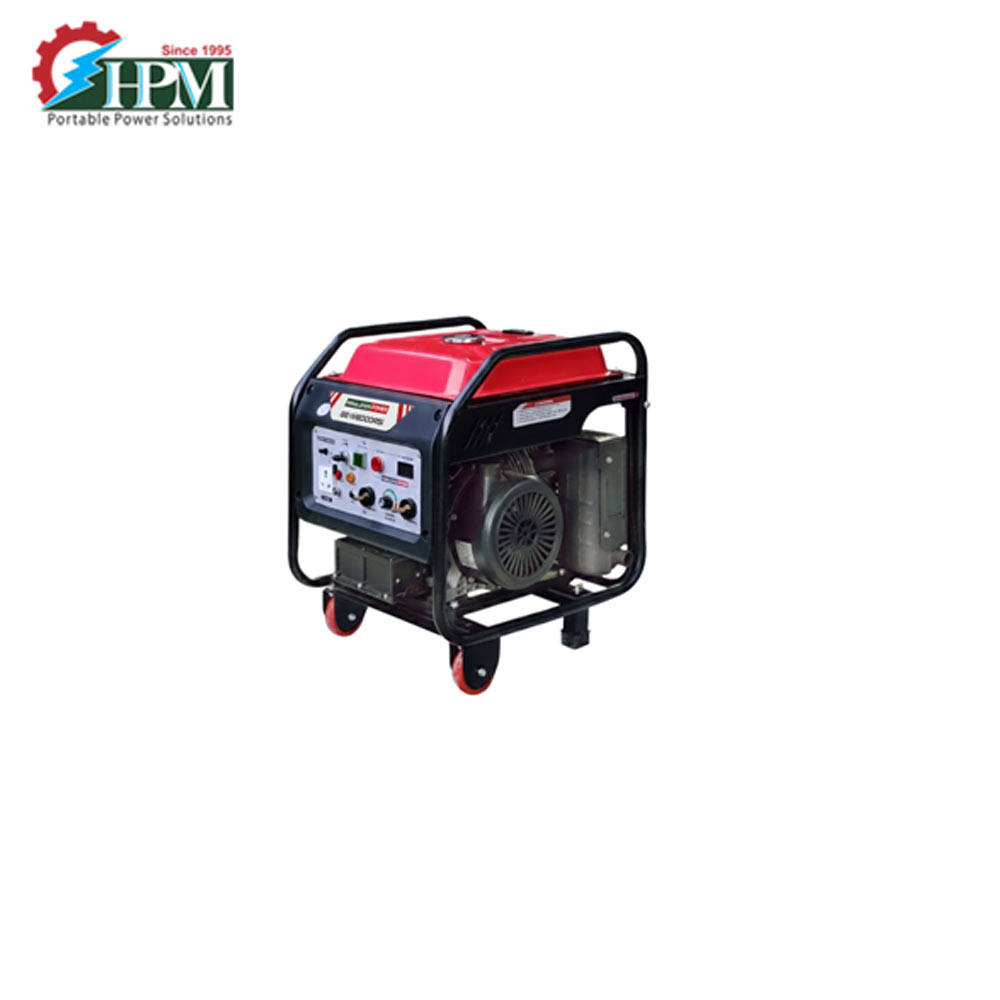

Powerful and Portable DC Arc Welder Cum Generator Model GE-W8000RSi
₹ 157072.16 (incl Of all taxes)
₹ 133112 + 18 % Gst + Delivery to pay
₹ 170000
In Stock
About This Product
- Welding Output Current (Duty Cycle60%) : 300Amps.
- Open Circuit Voltage (OCV): 65 Volt
- Electrode diameter : 2.6 mm to 4.0 mm
- Starting System :Recoil Start / Self Start
- Fuel Consumption Ltr/Hr. 60 % Duty Cycle : 2.0 Ltr./hr. (Approx)
- Continuous Operating Hour : 13 hr.
Special Highlights & Applications
-
This is a very Powerful and Portable DC Arc Welder Cum Generator Machine Suitable for All types of General Purpose Structural Welding, Light, & Heavy Welding Jobs, up to 5 mm Electrode
This Welding Generator have in built AC 230 volt – 50 Hz,5 KVA to run AC Appliances like Drill, Cutter, Grinder, Flood lights etc.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
- Welding Output Current (Duty Cycle60%): 300 Amps
- Welding Output Current (Duty Cycle100%) : 225 Amps.
- WorkingVoltage : 20v to35v
- OpenCircuit Voltage (OCV) : 65 Volt
- Welding CurrentRegulation (Amps) : 50 – 300 AMPS
- RectifyingMode : SCR,PhaseControlled3-phase,Rectifying Bridge
- MaximumElectrodediameter : 2.6mmto 5.0mm
AC GENERATOR
- AC Alternator Type : Brushless , Permanent Magnet Rotor
- Maximum Ac Output : 4000VA
- Rated Power (VA) : 3500VA
- Rated Output Current : 14 Amps.
- AC. Output Voltage & Frequency&n... Show More
- Welding Output Current (Duty Cycle60%): 300 Amps
- Welding Output Current (Duty Cycle100%) : 225 Amps.
- WorkingVoltage : 20v to35v
- OpenCircuit Voltage (OCV) : 65 Volt
- Welding CurrentRegulation (Amps) : 50 – 300 AMPS
- RectifyingMode : SCR,PhaseControlled3-phase,Rectifying Bridge
- MaximumElectrodediameter : 2.6mmto 5.0mm
AC GENERATOR
- AC Alternator Type : Brushless , Permanent Magnet Rotor
- Maximum Ac Output : 4000VA
- Rated Power (VA) : 3500VA
- Rated Output Current : 14 Amps.
- AC. Output Voltage & Frequency : 230 Volts ± 10 Volts, Single Phase – 50 Hz
- Frequency (Adjustable) : 50to60Hz.
- Classof Insulation : F
Engine
- Model : HM192PY
- Type : OHV25°Inclined,Single Cylinder,4 strokes, S.I, Forced Air Cooling
- Maximum Power : 16.0 hp @ 3600rpm
- Bore x Stroke : 92x67 mm
- Displacement : 445 cc
- Starting System :Recoil Start / Self Start
- Ignition System : TCI(TransistorControl Ignition)
- Fuel : Standard Petrol
- Fuel Tank Capacity : 25 Liters
- Fuel Consumption Ltr/Hr. 60 % Duty Cycle : 2.0 Ltr./hr.
- Continuous Operating Hour : 13 hr. Aproxx.
- Lube. Oil Capacity : 1200 ml.
- Lubricating Oil Consumption : 4.3 gm./Hr.
Standard Accessories
- AC Plug : 1Pcs.
- Tool Kit : 1 Set
- Welder Holder : 1 Nos
- Earthing Clamp with 3Mtr. Cable : 1 set
- Oil Funnel : 1 Nos.
Panel & Other Standard Features
- A.C. Circuit Protector (NFB) : Yes
- Volt-Hz-Hour Meter : Yes, Multifunction Digital Meter Provided
- DC Welding Amps. Meter : Yes
- A.C. Overload/ Fault Indicator : Yes
- Low Engine Oil Indicator : Yes
- Fuel Level Gauge : Yes
- A.C. Output Sockets : Yes
- Costar Wheels and handles : Yes
- Mono Rail Wheels : Yes
Size & Weight
- Dimension LxWxH (mm) : 670 x 510 x 670 mm
- Dry Weight (Kgs.): 103 KG
Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specification’s can change without any prior intimation
Show Less
