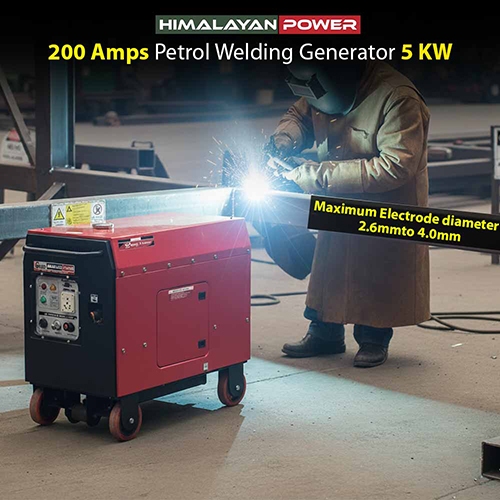

200 Amps Petrol Welding Generator 5 KW , Model Hybrid GE-W5500R, Recoil Start
₹ 237136.34 (incl Of all taxes)
₹ 200963 + 18 % Gst + Delivery to pay
₹ 279820
In Stock
About This Product
- Rated AC Output Power : 2500VA
- Rated Welding Current (Duty Cycle60%) : 200Amps.
- Welding Current Regulation (Amps) : 60 – 200 AMPS
- Maximum Electrode diameter : 2.6mmto 4.0mm
- Welding Mode : 2 Mode:High Current (Hybrid) / Low Current (Normal)
- StartingSystem : Recoil Start
- Continuous Operating Hour : Aproxx. 13hr.
- Fuel ConsumptionLtr./Hr. 60 % Duty Cycle : 1.1Ltr./hr.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
- Model : GE- W5500 R (TM/SM/20)
- Type : Silent DC Welder Cum AC Generator
- Rated Welding Current (Duty Cycle 60%) : 200 Amps.
- Working Voltage : 20v to 30 v
- Open Circuit Voltage (OCV) : 75 ± 5 Volts
- Welding Current Regulation (Amps) : 60 – 200 AMPS
- Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
- Maximum Electrode diameter : 2.6 mm to 4.0 mm
- Welding Mode : 2 Mode: High Current (Hybrid) / Low Current (Normal)
AC GENERATOR
- Type : Brushless with Rear Earth Magnet Rotor.
- Rated Ac Output Power : 2500VA
- Rated Output Current : 11 Amps.
- AC. Voltage... Show More
- Model : GE- W5500 R (TM/SM/20)
- Type : Silent DC Welder Cum AC Generator
- Rated Welding Current (Duty Cycle 60%) : 200 Amps.
- Working Voltage : 20v to 30 v
- Open Circuit Voltage (OCV) : 75 ± 5 Volts
- Welding Current Regulation (Amps) : 60 – 200 AMPS
- Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
- Maximum Electrode diameter : 2.6 mm to 4.0 mm
- Welding Mode : 2 Mode: High Current (Hybrid) / Low Current (Normal)
AC GENERATOR
- Type : Brushless with Rear Earth Magnet Rotor.
- Rated Ac Output Power : 2500VA
- Rated Output Current : 11 Amps.
- AC. Voltage (at Load) : 230 Volts ± 10 Volts, Single Phase
- Frequency (Adjustable) : 50 to 60 Hz.
- NFB Amps : 12 Amps.
- Class of Insulation : F
Engine
- Model : HM170P
- Type : Single Cylinder Air-cooled; 4-stroke, OHV 25˚ Inclined
- Maximum Power : 6.5 HP
- Bore x Stroke : 70x58
- Displacement : 223cc
- Starting System : Recoil Start
- Ignition System : TCI (Transistor Control Ignition)
- Fuel : Standard Petrol
- Fuel Tank Capacity : 14.5 Liters
- Fuel Consumption # Ltr./Hr. 60 % Duty Cycle : 1.1 Ltr./hr.
- Continuous Operating Hour : Aproxx. 13 hr.
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5 gm./Hr.
Panel & Other Standard Features
- A.C. Circuit Protector : Yes
- A C.Pilot Lamp : Yes
- Engine Oil Protection : Electronic Oil Alert & Indicator
- Fuel Level Gauge: Yes
- A.C. Output Sockets : 1 Nos.
- Costar Wheels : Yes
- Lithium Phosphate Battery (LiFePo4) : 25.6V – 25 Ah
- Charging Mode : Inbuilt 28 Volt - 9 Amps Charger
Weight & Dimention
- Dimension LxWxH (mm) : 865 x 470 x 710 mm
- Dry Weight (Kgs.) Without Accessories : 105 Kgs. ± 5%

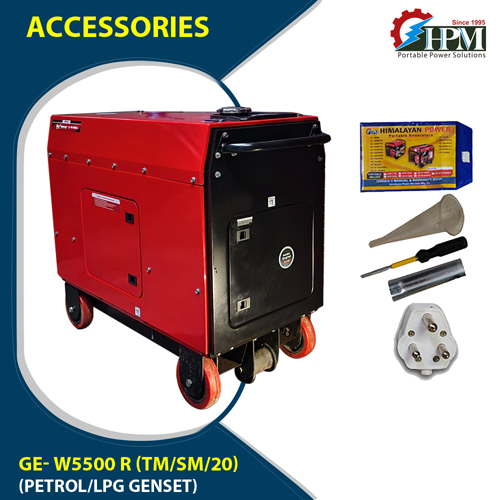

Standard Accessories
- AC Plug : 1Pec.
- Tool Kit : 1 Set
- Welder Holder : 1 Set
- Earthing Clamp with 3Mtr. Cable : 1 Set
- Oil Funnel : 1 No
- Owner’s Manual : 1 No
Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specification’s can change without any prior intimation
Show Less
HIMALAYAN POWER MACHINE MFG. CO.
Part of Khasra No. 51 and 52 Ka, Village Kuanwala, Haridwar Road, Dehradun,
Uttarakhand – 248001
Warranty
|
Warranty Summary |
|
|
Service Type |
|
|
Covered in Warranty |
|
|
Not Covered in Warranty |
|
The Hybrid GE-W5500R 200 A petrol welding generator has been a game changer for my workshop. I needed a robust machine capable of heavy stick welding and powering tools from one unit — and this delivers. thnk u hpm
bought this 5 kW output 200 Amps welding generator from hpm and i found this is a very ussefull product capacity makes thick metal work straightforward. Recoil start works reliably even in early morning cold.
Fuel consumption is sensible for its power class, and the build quality feels durable. For anyone needing a dependable, portable petrol welding generator that performs consistently, this is a solid choice.
I bought the Hybrid GE-W5500R for farm maintenance and metal fabrication, and I couldn’t be happier. Its 200 Amp output easily handles structural steel jobs, and the 5 kW generator power lets me run other power tools simultaneously.
The recoil start is simple and dependable — no battery hassles. It runs smoothly under load, and I’ve experienced consistent arc stability with minimal spatter. Even after prolonged use, it stays reliable without overheating.
Fuel efficiency is excellent for the performance level. Whether you’re a professional or enthusiast, this generator delivers solid value and reliability in one package.
this welding generator has impressed me with its rugged design and performance. Switching between welding and generator mode is seamless, and the 200 A capacity gives me strong, clean welds on thick metal.
The 5 kW output is generous, so I power lights, saws, and other tools at job sites with no issues. Noise is about what I’d expect from a petrol unit, and fuel use is fair for heavy duty work. A dependable, versatile welding generator I recom
For heavy-duty farm repairs and structural metalwork, the Hybrid GE-W5500R has been fantastic. The 200 Amp welding capacity is more than enough for thick plate steel, a Running as a 5 kW generator, it powers lights and tools efficiently
The recoil start is reliable and easy to use. welding loads impressive . Build quality feels industrial, and maintenance access is good. Great balance of portability, power, and durability.
This GE-W5500R petrol welding generator exceeded my expectations. Its 200 A welding output makes heavy stick welding effortless. I like that it also doubles as a 5 kW power source The recoil start is robust and never fails under normal cond
