300 Amps Welding Generator - 9.KW , Petrol Run, Model HPW-350D, Recoil & Self Start

300 Amps Welding Generator - 9.KW , Petrol Run, Model HPW-350D, Recoil & Self Start

( 7 Reviews )

₹ 188827.14 (incl Of all taxes)

₹ 160023 + 18 % Gst + Delivery to pay

~~₹ 222815~~

15% off

In Stock

About This Product

Maximum Output (Duty Cycle 60%) : 300 Amps.
Maximum Output (Duty Cycle 100%) : 275 Amps.
Electrode diameter : 3 mm to 6.0 mm
Starting System : Recoil Start / Self Start
Fuel Consumption Ltr./Hr. : 2.0 Ltr./hr. (Approx)
Continuous Operating Hour : Approx. 8 hr.
Aux. AC Output 230 Volt - 50 Hz : Invertor 3.0 KVA – 230 Volt AC, 50 Hz

Special Highlights & Applications:

World’s Most Portable, Professional &High Power Arc Welding Machine Suitable for High Class All type Weldings Including Structural Welding Rods 7018 Size 5mm Electrode.
Most suitable for Big Diameter Pipe Line welding.

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Category: GENERATORS

Easy Return & Refund

Quality Assurance

Trusted Delivery

After Sales Assistance

Buyer Protection

Maximum Output (Duty Cycle 60%) : 300 Amps.
Maximum Output (Duty Cycle 100%) : 275 Amps.
Working Voltage : 20v to 39v
Open Circuit Voltage : 80 Volt
Current Regulation Amps : *60 - 325
Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge Twin SCR Block
Electrode diameter : 3 mm to 6.0mm
Alternator Type : Multiphase , Brush less with Rear Earth Magnet Rotor

Engine

Model : HM192P
Type : Single Cylinder Air- cooled; 4 strokes, OHV 250 Inclined
Maximum Power : 16 HP
Bore x Stroke : 92×67&... Show More

Maximum Output (Duty Cycle 60%) : 300 Amps.
Maximum Output (Duty Cycle 100%) : 275 Amps.
Working Voltage : 20v to 39v
Open Circuit Voltage : 80 Volt
Current Regulation Amps : *60 - 325
Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge Twin SCR Block
Electrode diameter : 3 mm to 6.0mm
Alternator Type : Multiphase , Brush less with Rear Earth Magnet Rotor

Engine

Model : HM192P
Type : Single Cylinder Air- cooled; 4 strokes, OHV 250 Inclined
Maximum Power : 16 HP
Bore x Stroke : 92×67
Displacement : 460 cc
Starting System : Recoil Start / Self Start
Ignition System : TCI (Transistor Control Ignition)
Fuel : Standard Petrol
Fuel Tank Capacity : 15.5 Liters
Fuel Consumption # Ltr./Hr. : 2.0 Ltr./hr.
Continuous Operating Hour : Approx. 8 hr.
Lube. Oil Capacity : 1200 ml.
Lubricating Oil Consumption : 4.3 gm./Hr.

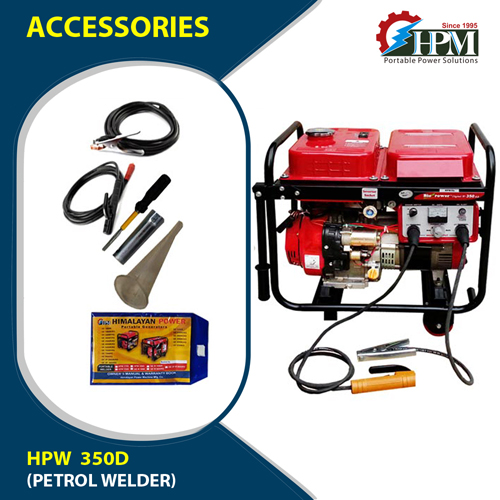

Standard Accessories

Tool Kit : 1 Set
Welder Holder : 1 Set
Earthing Clamp with 3Mtr. Cable : 1 Set
Oil Funnel : 1 No
Owner’s Manual : 1 No
Battery Terminal : 1 Set
Battery Tray & Holding Set : 1 Set

Panel & Other Standard Features

Aux. AC Output 230 Volt - 50 Hz : Invertor 3.0 KVA – 230 Volt AC, 50 Hz (Optional)
Overload Protection (NFB) : Yes (Inverter)
Power Indicator : No
Ampere Meter : Yes
Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
Fuel Level Gauge : Yes
Costar Wheels and handles : Yes (1 Set)

Size & Weight

Dimension LxWxH (mm) : 670 x 510 x 670 mm
Dry Weight (Kgs.) With Wheels& Battery : 82 Kg
Battery Specification : 12 Volt 25 Ah Size =190×120×225 (L×W×H)

Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specification’s can change without any prior intimation

Show Less

HIMALAYAN POWER MACHINE MFG. CO.

Part of Khasra No. 51 and 52 Ka, Village Kuanwala, Haridwar Road, Dehradun,

Uttarakhand – 248001

Warranty

Warranty Summary	*1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier
Service Type	Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint
Covered in Warranty	*1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier
Not Covered in Warranty	NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
