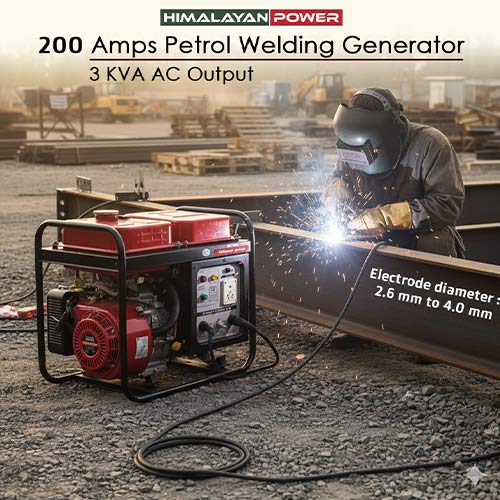

200 Amps Petrol Welding Generator,3 KVA AC Output, Model GE-W5000R, Recoil Start

200 Amps Petrol Welding Generator,3 KVA AC Output, Model GE-W5000R, Recoil Start

( 8 Reviews )

₹ 101979.14 (incl Of all taxes)

₹ 86423 + 18 % Gst + Delivery to pay

~~₹ 120335~~

15% off

In Stock

About This Product

Welding Output Current (Duty Cycle60%) : 200Amps.
Welding Output Current (Duty Cycle100%): 175Amps.
Open Circuit Voltage (OCV): 65 Volt (Minimum)
Electrode diameter : 2.6 mm to 4.0 mm
Max AC Output (Single Phase) : 2000 VA
Starting System : Recoil Start
Fuel Consumption Ltr./Hr. : 1 Ltr./hr. (Approx)
Continuous Operating Hour : Approx. 12 hr.

Special Highlights & Applications

Most Portable & Low Cost but high QualityArc Welding Machine Suitable for all types General Purpose Structural Welding, Light and medium Welding Jobs, Including Pipe Welding Etc. up to 4 mm Electrode
In built AC 230 volt – 50 Hz, 2 KVA for AC Appliances

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Category: GENERATORS

Easy Return & Refund

Quality Assurance

Trusted Delivery

After Sales Assistance

Buyer Protection

Maximum Welding Current : 200 Amps.
Rated Welding Output Current (Duty Cycle60%) :175 Amps
Working Voltage : 20v to 32v
Open Circuit Voltage (OCV) : 65 Volt (Minimum)
Welding Current Regulation (Amps)  : 75-175 AMPS
Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
Maximum Electrode diameter : 2.6 mm to 4.0 mm

AC GENERATOR

Type : Brush less with Rear Earth Magnet Rotor.
Alternator Type : Multiphase, Brush less with Rear Earth Magnet Rotor
Maximum Power (VA) : 2000 VA
Rated Power (VA) : 1800VA
Rated Current : 7.5... Show More

Maximum Welding Current : 200 Amps.
Rated Welding Output Current (Duty Cycle60%) :175 Amps
Working Voltage : 20v to 32v
Open Circuit Voltage (OCV) : 65 Volt (Minimum)
Welding Current Regulation (Amps)  : 75-175 AMPS
Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
Maximum Electrode diameter : 2.6 mm to 4.0 mm

AC GENERATOR

Type : Brush less with Rear Earth Magnet Rotor.
Alternator Type : Multiphase, Brush less with Rear Earth Magnet Rotor
Maximum Power (VA) : 2000 VA
Rated Power (VA) : 1800VA
Rated Current : 7.5 Amps.
NFB Amps : 7.5 Amps.
AC. Output Voltage : 220 Volts ± 8% Volts, Single Phase – 50 Hz
Frequency (Adjustable) : 50to60Hz.
Class of Insulation : F

Engine

Model : HM170P
Type : SingleCylinderAir-cooled;4-stroke,OHV25˚Inclined
Maximum Power :6.5HP
Bore x Stroke : 70x58
Displacement : 223cc
Starting System : Recoil Start
Ignition System : HM170P
Fuel : Standard Petrol
Fuel Tank Capacity : 12 Liters
Fuel Consumption # Ltr./Hr. : 1.0 Ltr./hr.
Continuous Operating Hour : 12 hr.
Lube. Oil Capacity : 600 ml.
Lubricating Oil Consumption : 2.5 gm./Hr.

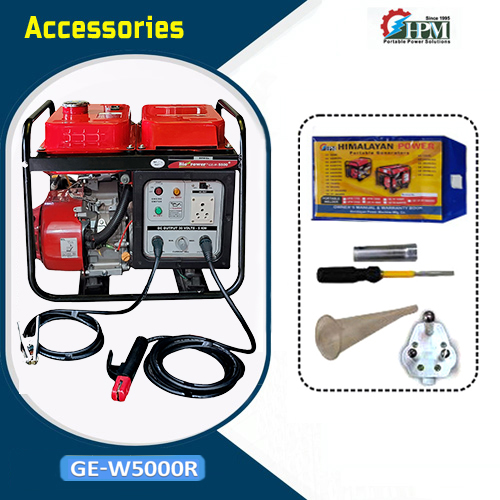

Standard Accessories

AC Plug : 1Pec.
Tool Kit : 1 Set
Welder Holder : 1 Set
Earthing Clamp with 3Mtr. Cable : 1 Set
Oil Funnel : 1 No
Owner’s Manual : 1 No

Optional Accessories

Sheet Metal Welding Attachment (Helps to adjust low current upto 50 Amps.): 1 Kit (Additional Cost)
Costar Wheels : Optional

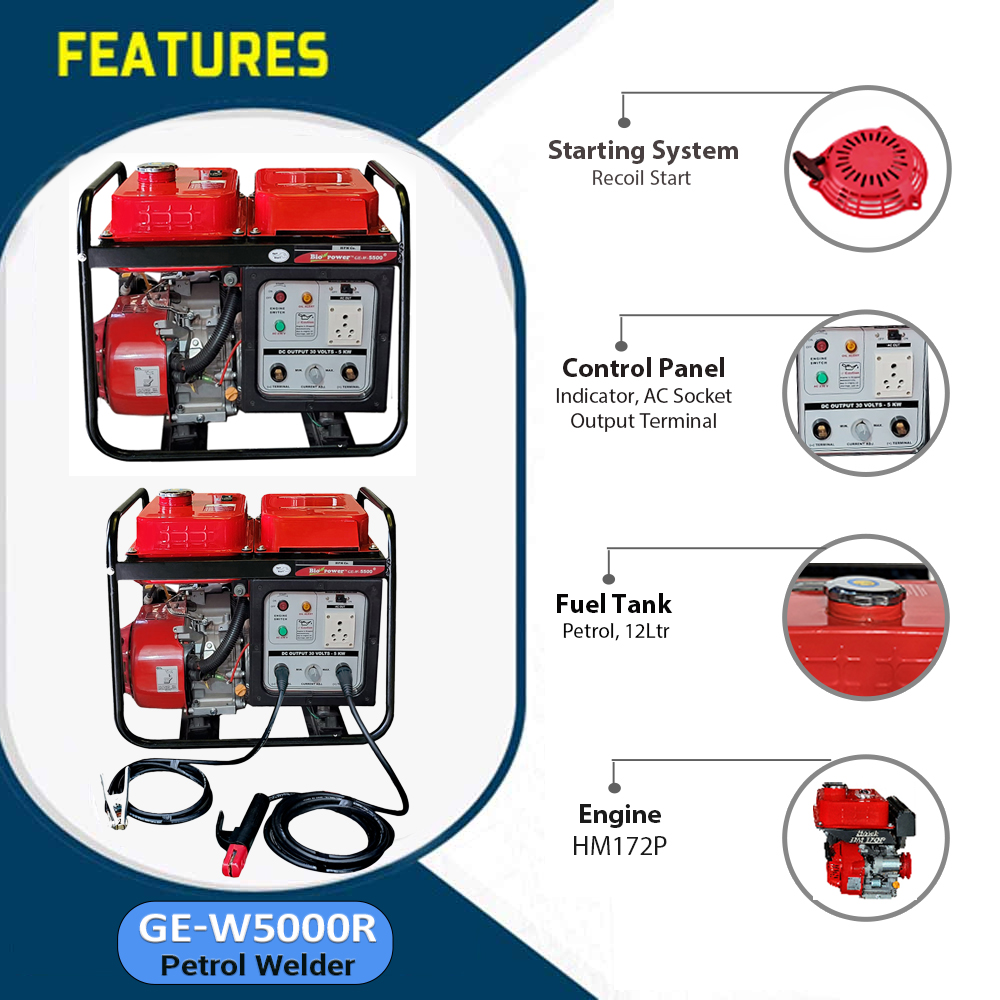

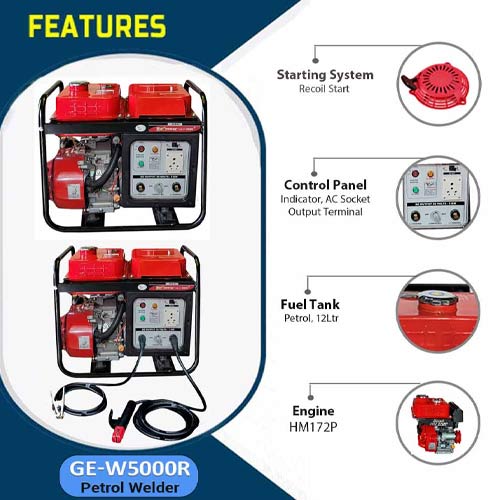

Panel & Other Standard Features

A.C. Circuit Protector (NFB) : Yes
A C. Pilot Lamp : Yes
Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
Fuel Level Gauge: Yes
A.C. Output Sockets : Yes (1 Nos.)

Size & Weight

Dimension LxWxH (mm) : 600x450x530 mm
Dry Weight (Kgs.): 55 Kgs.

Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specification’s can change without any prior intimation

Show Less

HIMALAYAN POWER MACHINE MFG. CO.

Part of Khasra No. 51 and 52 Ka, Village Kuanwala, Haridwar Road, Dehradun,

Uttarakhand – 248001

Warranty

Warranty Summary	*1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier
Service Type	Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint
Covered in Warranty	*1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier
Not Covered in Warranty	NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
