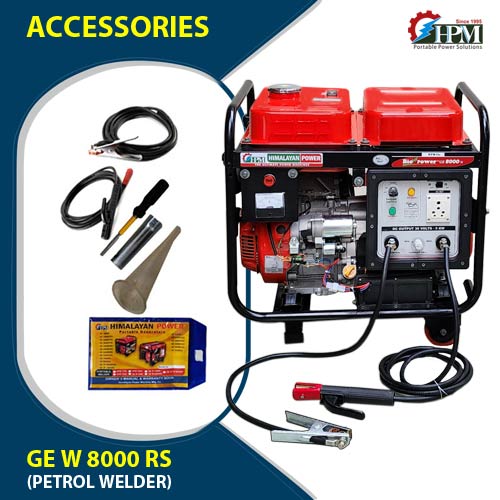

300 Amps Welding Generator -5 KW, Model GE-W8000RS, Recoil & Self Start
₹ 183534.84 (incl Of all taxes)
₹ 155538 + 18 % Gst + Delivery to pay
₹ 216570
In Stock
About This Product
- Welding Output Current (Duty Cycle60%) : 275Amps.
- Welding Output Current (Duty Cycle100%): 200Amps.
- Open Circuit Voltage (OCV): 65 Volt (Minimum)
- Electrode diameter : 2.6 mm to 4.0 mm
- Max AC Output (Single Phase) : 5000 VA
- Starting System : Recoil Start / Self Start
- Fuel Consumption Ltr./Hr. : 2.0 Ltr./hr. (Approx)
- Continuous Operating Hour : Approx. 8 hr.
Special Highlights & Applications
- Portable Arc Welder Cum Generator Machine Suitable for All types of General Purpose Structural Welding, Light, & Heavy Welding Jobs, up to 5 mm Electrode
- In built AC 230 volt – 50 Hz, 5 KVA for AC Appliances
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
- WeldingOutput Current (Duty Cycle60%) : 275Amps.
- WeldingOutput Current (Duty Cycle100%) : 200Amps.
- Working Voltage : 20v to 32v
- Open Circuit Voltage (OCV) : 65 Volt (Minimum)
- Welding Current Regulation (Amps) : 75-175 AMPS
- Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
- Maximum Electrode diameter : 2.6mmto 5.0mm
AC GENERATOR
- Alternator Type : Brushless with Rear Earth Magnet Rotor.
- Maximum Ac Output : 5000 VA
- Rated Output Current : 17.4Amps.
- AC. Voltageat... Show More
- WeldingOutput Current (Duty Cycle60%) : 275Amps.
- WeldingOutput Current (Duty Cycle100%) : 200Amps.
- Working Voltage : 20v to 32v
- Open Circuit Voltage (OCV) : 65 Volt (Minimum)
- Welding Current Regulation (Amps) : 75-175 AMPS
- Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
- Maximum Electrode diameter : 2.6mmto 5.0mm
AC GENERATOR
- Alternator Type : Brushless with Rear Earth Magnet Rotor.
- Maximum Ac Output : 5000 VA
- Rated Output Current : 17.4Amps.
- AC. Voltageat No Load : 240Volts±10 Volts,Single Phase
- AC. Voltageat Rated Load : 220Volts±10 Volts,SinglePhase
- Frequency (Adjustable) : 50to60Hz.
- NFB Amps : 18Amps.
- Class of Insulation : F
Engine
- Model : HM192PY
- Type : OHV25°Inclined,Single Cylinder,4 strokes, S.I, Forced Air Cooling
- Maximum Power : 16.0 hp @ 3600rpm
- Bore x Stroke : 92×67 mm
- Displacement : 445 cc
- Starting System : Recoil Start / Self Start
- Ignition System : TCI (Transistor Control Ignition)
- Fuel : Standard Petrol
- Fuel Tank Capacity : 15.5 Liters
- Fuel Consumption # Ltr./Hr. 60 % Duty Cycle : 2.0 Ltr./hr.
- Continuous Operating Hour : Approx. 8 hr.
- Lube. Oil Capacity : 1200 ml.
- Lubricating Oil Consumption : 4.3 gm./Hr.
Standard Accessories
- AC Plug : 1Pec.
- Tool Kit : 1 Set
- Welder Holder : 1 Set
- Earthing Clamp with 3Mtr. Cable : 1 Set
- Oil Funnel : 1 No
- Owner’s Manual : 1 No
- Battery Terminal : 1 Set
- Battery Tray & Holding Set : 1 Set
Panel & Other Standard Features
- A.C. Circuit Protector (NFB) : Yes
- A C. Pilot Lamp : Yes
- Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
- Fuel Level Gauge: Yes
- A.C. Output Sockets : Yes (1 Nos.)
- Costar Wheels and handles : Yes (1 Set)
Size & Weight
- Dimension LxWxH (mm) : 670 x 510 x 670 mm
- Dry Weight (Kgs.) With Wheels& Battery : 103 KG
- Battery Specification : 12 Volt 25 Ah Size =190×120×225 (L×W×H)
Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specification’s can change without any prior intimation
