200 Amps Welding Generator 3 Phase - 6 KW, Petrol Run, Model GE-3P-W8000RS, Recoil & Self Start
₹ 201447.24 (incl Of all taxes)
₹ 170718 + 18 % Gst + Delivery to pay
₹ 237707
In Stock
About This Product
- DC Welding Output (Duty Cycle 60%) : 200 Amps.
- Open Circuit Voltage (OCV): 65 Volt (Minimum)
- Electrode diameter : 3 mm to 5.0 mm
- AC Output (3-Phase): 7000 VA
- Max AC Output (Single Phase) : 4500 VA
- Starting System : Recoil Start / Self Start
- Fuel Consumption Ltr./Hr. : 2.0 Ltr./hr. (Approx)
- Continuous Operating Hour : Approx. 8 hr.
Special Highlights & Applications
- Portable Arc Welder Cum Generator Machine Suitable for All types of General Purpose Structural Welding, Light, & Medium Welding Jobs, up to 4 mm Electrode
- In built AC 230 volt – 50 Hz, 4.5 KVA – Single Phase. (Max)
- In Built AC 415 Volt – 50 Hz, 7 KVA- 3 Phase
- Can run all AC Appliance including 3 Phase Motors.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
- DC Welding Output (Duty Cycle 60%) : 200 Amps.
- Working Voltage : 20v to 35v
- Open Circuit Voltage (OCV) : 65 Volt (Minimum)
- Current Regulation : 75 - 200 Amps.
- Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
- Maximum Electrode diameter : 3 mm to 5.0mm
AC GENERATOR
- Alternator Type : Brushless with Rear Earth Magnet Rotor.
- AC Output (3-Phase) : 7000VA
- AC. Voltage (3-Phase) : 415 Volts ± 10 Volts, Three Phase
- Rated AC Current Per Phase : 12 Amps. Each Phase
- Max AC Output (Single Phase) : 4500VA
- Single Phase&... Show More
- DC Welding Output (Duty Cycle 60%) : 200 Amps.
- Working Voltage : 20v to 35v
- Open Circuit Voltage (OCV) : 65 Volt (Minimum)
- Current Regulation : 75 - 200 Amps.
- Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
- Maximum Electrode diameter : 3 mm to 5.0mm
AC GENERATOR
- Alternator Type : Brushless with Rear Earth Magnet Rotor.
- AC Output (3-Phase) : 7000VA
- AC. Voltage (3-Phase) : 415 Volts ± 10 Volts, Three Phase
- Rated AC Current Per Phase : 12 Amps. Each Phase
- Max AC Output (Single Phase) : 4500VA
- Single Phase AC Voltage (No Load) : 240 Volts ± 10 V, Single Phase
- Single Phase AC Voltage (at Load) : 220 Volts ± 10 V, Single Phase Phase
- Rated Current (Single Phase) : 17.5 Amps.
- Circuit Breaker (Single Phase) : 18 Amps.
- Frequency : 50 to 60 Hz.
- Class of Insulation : F
Engine
- Model : HM192PY
- Type : OHV25°Inclined,Single Cylinder,4 strokes, S.I, Forced Air Cooling
- Maximum Power : 16.0 hp @ 3600rpm
- Bore x Stroke : 92×67 mm
- Displacement : 445 cc
- Starting System : Recoil Start / Self Start
- Ignition System : TCI (Transistor Control Ignition)
- Fuel : Standard Petrol
- Fuel Tank Capacity : 15.5 Liters
- Fuel Consumption # Ltr./Hr. 60 % Duty Cycle : 2.0 Ltr./hr.
- Continuous Operating Hour : Approx. 8 hr.
- Lube. Oil Capacity : 1200 ml.
- Lubricating Oil Consumption : 4.3 gm./Hr.
Panel & Other Standard Features
- A.C. Circuit Breaker (Single Phase) : Yes
- A.C. Circuit Breaker Protector (3- Phase) : Yes
- Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
- A.C. Pilot Lamp (R, Y, B) : Yes
- Fuel Level Gauge : Yes
- A.C. Output Sockets (Single Phase) : Yes (1 No.)
- A.C. Output Sockets (3- Phase) : Yes (1 No.)
- Digital Hour Meter & Frequency (Hz.) Meter : Yes
- Costar Wheels and handles :Yes (1 Set)

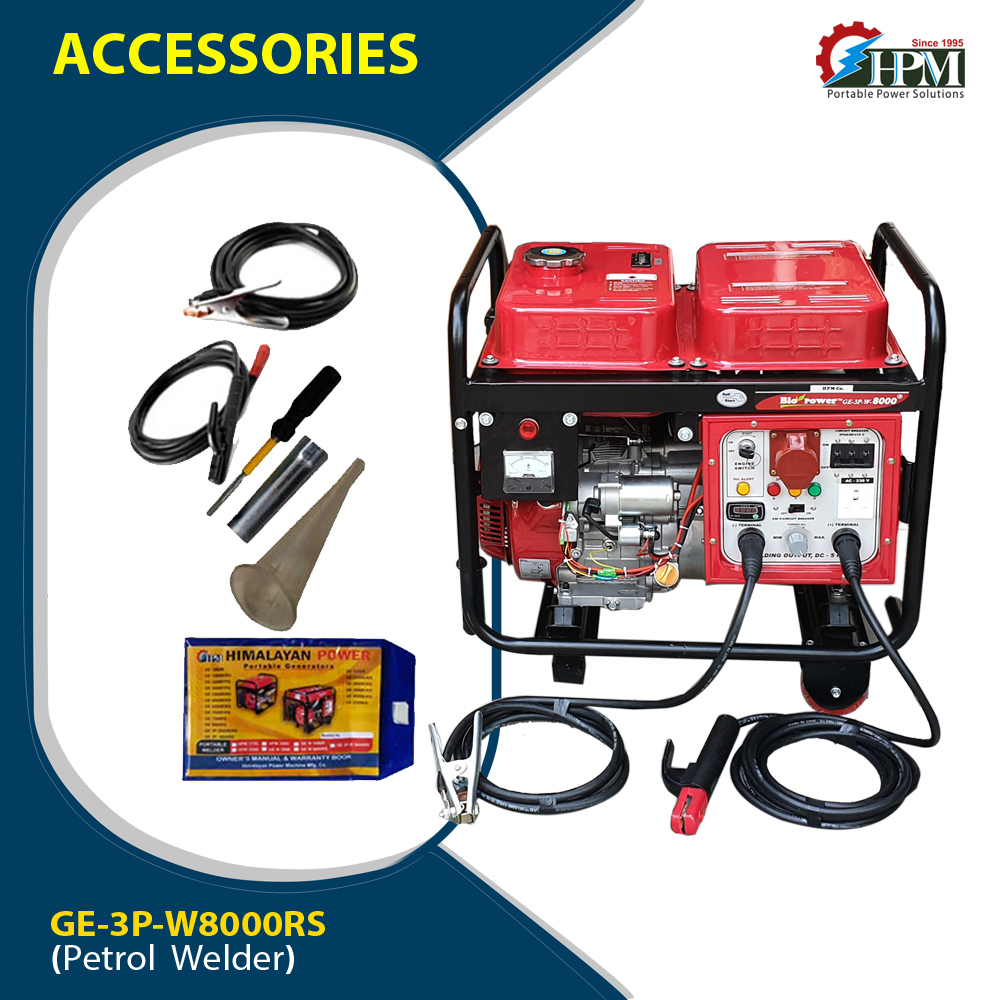

Standard Accessories
- ACPlug (3 Phase) : 1Pcs.
- ACPlug (Single Phase) : 1Pcs.
- Tool Kit : 1 Set
- Welder Holder : 1 Set
- Earthing Clamp with 3Mtr. Cable : 1 Set
- Oil Funnel : 1 No
- Owner’s Manual : 1 No
- Battery Terminal : 1 Set
- Battery Tray & Holding Set : 1 Set
Size & Weight
- Dimension LxWxH (mm) : 670 x 510 x 670 mm
- Dry Weight (Kgs.) With Wheels& Battery : 103.5 KG
- Battery Specification : 12 Volt 25 Ah Size =190×120×225 (L×W×H)
Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specification’s can change without any prior intimation
Show Less
HIMALAYAN POWER MACHINE MFG. CO.
Part of Khasra No. 51 and 52 Ka, Village Kuanwala, Haridwar Road, Dehradun,
Uttarakhand – 248001
Warranty
|
Warranty Summary |
|
|
Service Type |
|
|
Covered in Warranty |
|
|
Not Covered in Warranty |
|
The design allows for convenient transportation. Maintenance is simple and manageable. It’s a powerful yet user-friendly unit. I would recommend this welding generator to anyone seeking dependable performance and durability.
