5%OFF

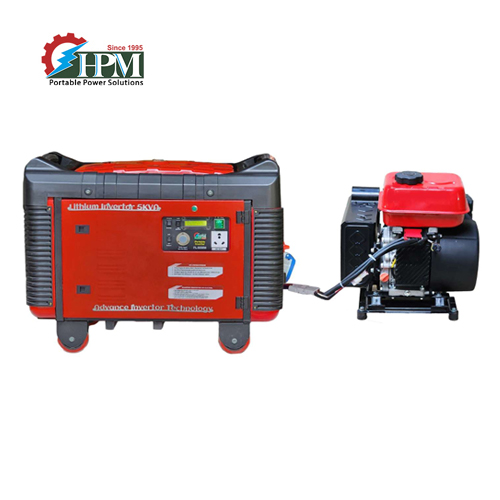

5KVA Portable Lithium Power Inverter , HY-Z5000UPS
₹ 209999.88 (incl Of all taxes)
₹ 177966 + 18 % Gst + Delivery to pay
₹ 220000
In Stock
About This Product
Special Highlight
- This is a Portable and Compact Lithium Inverter, It Runs 1.5 ton AC & Other Load Upto 5 KVA Dual Use, AS Inverter Mode & UPS Mode.
Application
- Best stuitable for Home use, Shops, Offices, Coaching Centers, Insitutes,Computer Center, Gaming Center, Dental Clinics, Nursing Homes,Salons, Banks, Atms, LED Advertersing Vans, Food Vans, Ambulances, RTV /OBM Vans, Panetry Vans, Submersible Pump, All Computer & UPS Applications, Industrial Use, ETC.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
Battery
- Cell Chemistry : Lithium Ion NCM
- Cell Type : Cylindrical 21700, 3.6 V- 5000 mAh
- Nominal Battery Voltage : 50.4 V
- Cell Configuration : 14S - 8P
- Total Battery Capacity : 160 AH - 8 KWh
- Life Cycles : ≥ 1500 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
- BMS (Battery Management System) : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing Ov
- Shelf Life : Charge Every 3 - 6 Months
AC 230 Volt Output (Invertor AC Output Power)
- Maximum AC Output Power : 5000 VA
- Rated Voltage & Type : ... Show More
Battery
- Cell Chemistry : Lithium Ion NCM
- Cell Type : Cylindrical 21700, 3.6 V- 5000 mAh
- Nominal Battery Voltage : 50.4 V
- Cell Configuration : 14S - 8P
- Total Battery Capacity : 160 AH - 8 KWh
- Life Cycles : ≥ 1500 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
- BMS (Battery Management System) : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing Ov
- Shelf Life : Charge Every 3 - 6 Months
AC 230 Volt Output (Invertor AC Output Power)
- Maximum AC Output Power : 5000 VA
- Rated Voltage & Type : AC - 230 V, 50Hz, Pure Sine Wave
- THD : < 3% (Full R Load)
- Power Factor : 0.8
- Rated Current : 17.3 Amps
- NFB (Circuit Breaker) : 17 Amps
- Over Load : 110% < Load <120% @ 1 min 120% < Load <150% @ 0.5 S
- Power Less (No Load & Turned- Off) : < 10W
- AC Output Back time @ 70% of rated load (VA) : ≤ 3 Hours
- Max. Efficiency (>70% Load) : 85%
- Output Socket : Indian Version AC Socket x 1(US/UK/EU/AU Socket)
LED Light & Fixture
- Illumination High Power LED Flood Light : 48V - 50W (High Bright)
- LED Flood Light Illumination at Full Brightness 50W : 8000 Lm
- Brightness Adjustment : Smooth Continious Brightness Control, 5W - 50Watt, (800 Lm - 8000 Lm)
- Light Color : Cool White
- Color Temp : 6500k
- Beam Angle : 120 Degree
- Tower Type : Telescopic Pole
- Tower Height Max : 7 Ft
- Tower Height - Min. (Folded Height) : 4.5 Ft
- Light Mounting and Angle Adjustment : Throught universal Ball head Joint Light Angle Adj. 0 - 90 Degree
- Material : Premimum Finish CRC Tube
Control Panel / Charging Input & Other Standard Features
- Battery Level / Capacity Indicators : inbuild LCD Display / character display
- Function Indicators : Fault / AC Output / Mains Charging /Modes/ Load Percentage,Battery Voltage, Mains Voltage, Temprature, UPS / Inverter Mode
- Mode Selection : (UPS / Inverter)
- Costar Wheels : Yes
- Overload Protection (NFB) : Yes
- AC Inbuilt Charger : External 32 Amps EU type AC Socket and Plug Provided
- Charging From Grid Power : Chraging Rate 20 Amps
- AC input 120V to 275V : Charging Time > 8 Hours
- Solar Panel PV Charge : Yes, 2 Pin Input Metal Socket Provided on Control Panel Recommended Minimum Solar Panel : 330 W - 36V * 2S
- Portable Petrol Engine Charger : 50V - 80 Amps (4000 Watt Maximum ), Himalayan Model BC-5080A, Charging time Approx 1.5 Hr for 80% Charging, Applicable for Model No: HY-Z5000UPS With 10 Ft Cable & Anderson Connector 6Pin - 100 Amps
- Heat Disipation : Air Cooling (Fan), Aluminium Housing
- IP Rate : IP 55 Protected from Water Spary < 15˚From Vertical
Working Condition
- Charge Temperature : 0˚C ~ 45˚C
- Operating Usage Temp. : -10˚C ~ 40˚C
- Operation Storage Humidity : 5% ~ 90%
Product Size & Weight
- Net Weight : Approx. 106 Kg + 24 Kg for Engine Charger
- Warranty : 3 Year on Battery * & 1 Year for Complete Product (Solar Power Station)
Package Contents
- 1* HY-Z5000UPS Lithium Inverter + Engine Charger BC5080A
- 1* 3 pin Mains AC Plug
- 1* User Manual
- 1 * 32 Amps EU type AC Plug
- Solar Pannel 220 Watt * 3S (Optional)
