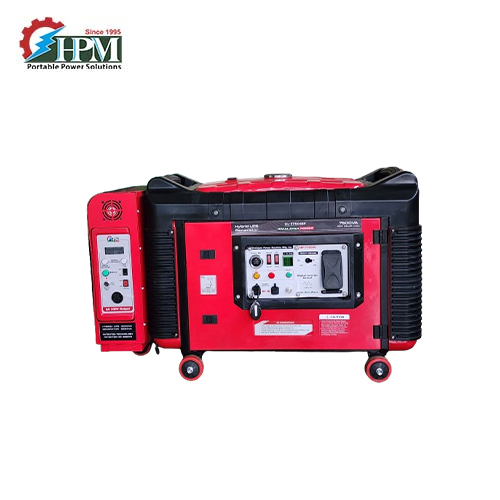

HY-Z7500iP, 5.5kVA Genset, 4 Mode Starting System
₹ 199999.38 (incl Of all taxes)
₹ 169491 + 18 % Gst + Delivery to pay
₹ 250000
In Stock
About This Product
- *Max AC. Output VA: 5500
- AC Output Voltage : 230v ± 5 v
- Starting System : Recoil Start + Self Start + Remote Start
- Fuel Consumption : Petrol 1.5 ltr/hr, Approx.
- Run time: 14 Hrs. Approx.
Special Highlight :
-
The hybrid generator being developed by Himalayan Power Products will integrate a 2kWh lithium battery-based inverter with a 5.5kVA fuel-powered genset, delivering a combined power backup capacity of up to 7.5kVA. Designed as a poly-power solution, this system can draw energy from multiple sources—such as fuel, solar, or the main grid—ensuring maximum flexibility and reliability. The inclusion of a lithium battery enables seamless switching between power sources, providing uninterrupted power supply and enhancing overall efficiency and performance.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
- *Max AC. Output VA : 5500
- *Rated AC. Output VA : 230v ± 5 v
- NFB Amps : 22Amp
Generator & Hybrid Inverter
- Genset AC. Output VA : 5500
- AC Output Voltage : 230v ± 5 v
- Genset Output AC current : 23.9 Amp
- NFB Amps : 22 Amp
- Auxilary UPS AC. Output VA : 2000
- AC Output Current (Aux. UPS) : 230 Volt - 6.5 Amp
- Backup Peroid Aux. UPS @ 60% Output Load : Approx. 2 hours
- Alternator Type : Multi-Phase, Permanent Magnet (18 Pole), Self Excitation
- Genset Invertor : 100 KHz, IGBT Based Digital Invertor – 5.5 Kw
- Aux. UPS In... Show More
- *Max AC. Output VA : 5500
- *Rated AC. Output VA : 230v ± 5 v
- NFB Amps : 22Amp
Generator & Hybrid Inverter
- Genset AC. Output VA : 5500
- AC Output Voltage : 230v ± 5 v
- Genset Output AC current : 23.9 Amp
- NFB Amps : 22 Amp
- Auxilary UPS AC. Output VA : 2000
- AC Output Current (Aux. UPS) : 230 Volt - 6.5 Amp
- Backup Peroid Aux. UPS @ 60% Output Load : Approx. 2 hours
- Alternator Type : Multi-Phase, Permanent Magnet (18 Pole), Self Excitation
- Genset Invertor : 100 KHz, IGBT Based Digital Invertor – 5.5 Kw
- Aux. UPS Invertor : SW - High frequency(100 KHz) Invertor – 2 Kw
Engine
- Engine Model : HM172Pi
- Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
- Maximum Power : 9 HP @ 3600
- Bore x Stroke : 72x58 mm
- 4 Mode Starting System : Mode 1: Recoil starter, Mode 2 : Touch button Starting, Mode 3 : Remote Button Starting, Mode 4 : Auto Start
- 3 Mode Stopping System : Mode 1: Touch button Stop, Mode 2: Remote Button Stop, Mode 3 : Auto Stop
- Displacement : 240 cc
- Fuel : Petrol
- Fuel Tank Capacity : Petrol - 20 Ltr
- Fuel Consumption : Petrol 1.5 ltr/hr, Approx.
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5 gm./Hr.
- Sound level (Db) (from 1 meter) : <86Db
- Continues Running (With One Filling) : 14 Hrs. Approx.
Panel & Other Standard Features
- Multifunction Digital Meter & Indicator (for Genset) : Digital Control Panel (V, Hz, Amp)
- Digital Voltmeter for Aux. UPS Inverter : INPUT DC VOLT + AC OUTPUT VOLT METER
- Main Genset AC Output socket : 50 Amps
- Aux. UPS- AC output socket : 15 Amps
- AC On /Off, Overload Protection (NFB) : Yes
- Electronic Over Load Protection : Yes, Inbuilt with Inverter
- 2 Genset Paralleling Capability : Yes, Red & Black Pair of Sockets Provided in Control Panel for Paralleling of 2 Generators
- Remote start Compatibility : Yes, Inbuilt
- Oil Alert System : Yes
- Fuel Level Gauge : Yes
Hybrid system
- Lithium NCM Battery : 51volt - 36 AH, 1836 Wh
- 3 Battery Charging Modes : Mode 1: Min. 660 watt Solar Panel (220 watt X 3S), Mode 2: AC Mains/Genset Power -SMPS 10 Amps, Mode 3 : Genset Stator DC@10 Amps,60 volt 60volt
- BLDC Motor Power : 48 volt - 1.5kw
- BLDC Motor Controller & Charger : 48 volt to 90 volt, 40Amp
- Control System : Micro-Controller based,Programmable Full Automatic
- Solar Panel Compatibilty : Yes, 220 Watt - 3S (SERIES)
I recently purchased this 5.5kVA genset with a 4 Mode Starting System, and it has been outstanding. The multiple starting options make it extremely convenient, especially in different weather conditions.
It starts smoothly every time and delivers consistent power for welding and backup use. The arc stability is excellent, allowing me to complete clean and precise welds.
The build quality feels rugged and durable for job site use. Fuel consumption is reasonable, and it runs for long hours without overheating. Overall, this welding generator is reliable, powerful, and perfect for professional or personal projects.
This 5.5kVA welding generator has exceeded my expectations. The 4 Mode Starting System is a great feature because I can switch between starting options easily. It delivers steady voltage output, ensuring smooth welding without interruptions.
I’ve used it for metal fabrication and repair work, and the performance remains consistent. The engine runs quietly compared to other gensets in this range. It’s also fuel-efficient and easy to maintain.
The frame is strong and well-built for tough environments. I highly recommend this generator for anyone needing reliable welding and backup power.
The 5.5kVA genset with 4 Mode Starting System is perfect for fieldwork. It provides stable and reliable power, making welding tasks much easier
