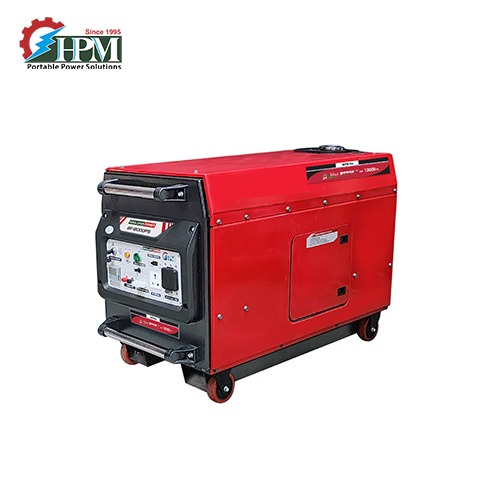

11 KVA SILENT PORTABLE GENERATOR MODEL- GE-12000-PS

11 KVA SILENT PORTABLE GENERATOR MODEL- GE-12000-PS

( 0 Reviews )

₹ 176070.16 (incl Of all taxes)

₹ 149212 + 18 % Gst + Delivery to pay

~~₹ 185000~~

5% off

In Stock

About This Product

*Max AC. Output VA: 11000
Power Factor : 0.8
*Rated AC. Output VA: 8800
Starting System : Recoil & Self Start
Fuel Consumption: Petrol 3.7 Itr/hr Approx.
Run time: 6hr. Approx

Special Highlight:

This is a most powerfull 11 KVA, Single Phase -230Volt Portable Generator with Advance Alternator Technology. This is a Silent Type Portable Petrol Generator & Can also Run On LPG/PNG Fuel for Cheaper Running CostThis Portable Generator Capable of Running 4 - 1.5 Ton Air Conditioner at a time Or 3-1.5 Ton Air Conditioner + Other Loads.

Application:

For Running 1.5/2 Ton Air Condition, Office Use, Home Use, Small Institution, Computer Center, Nursing Home School, Syber Café, Banks, RTV Vans, Ambulances, Food Vans, Vanity Van & other Vehicular Applications, Industrial Load Etc.

Category: GENERATORS

Easy Return & Refund

Quality Assurance

Trusted Delivery

After Sales Assistance

Buyer Protection

Description
Reviews (0)

*Max AC. Output VA : 2800
*Rated AC. Output VA : 2500
Rated Current Amps : 10.9
NFB Amps : 11
AC. Voltage at Rated Load : 225 Volts ± 10 Volt 50 Hz, Single Phase
AC. Voltage at No Load: 225 Volts ± 10 Volt

Alternator

#Alternator Max. Current Capacity : 40 Amps.
Alternator : Self-Excitation & Constant Voltage (With AVR), THD = 25%,,

Engine

Engine Model : HM194 PY
Type : OHV25°Inclined,Single Cylinder,4 Strokes, S.I, Forced Air Cooling
Maximum Power : 20.0 hp @ 3600rpm
Bore x Stroke : 94x76 mmShow More

*Max AC. Output VA : 2800
*Rated AC. Output VA : 2500
Rated Current Amps : 10.9
NFB Amps : 11
AC. Voltage at Rated Load : 225 Volts ± 10 Volt 50 Hz, Single Phase
AC. Voltage at No Load: 225 Volts ± 10 Volt

Alternator

#Alternator Max. Current Capacity : 40 Amps.
Alternator : Self-Excitation & Constant Voltage (With AVR), THD = 25%,,

Engine

Engine Model : HM194 PY
Type : OHV25°Inclined,Single Cylinder,4 Strokes, S.I, Forced Air Cooling
Maximum Power : 20.0 hp @ 3600rpm
Bore x Stroke : 94x76 mm
Displacement : 527 cc
Starting System : Recoil Start + Self Start
Fuel : Petrol + LPG (Optional)
Fuel Tank Capacity : Petrol 20 Ltr.
Fuel Consumption : Petrol 3.7 Itr/hr Approx.
Continues Running (With One Filling) :6 Hrs.
Lube. Oil Capacity : 1200 ml.
Lubricating Oil Consumption : 4.3 gm/Hr.
Sound level (Db) (from 1 meter) :<86 Db

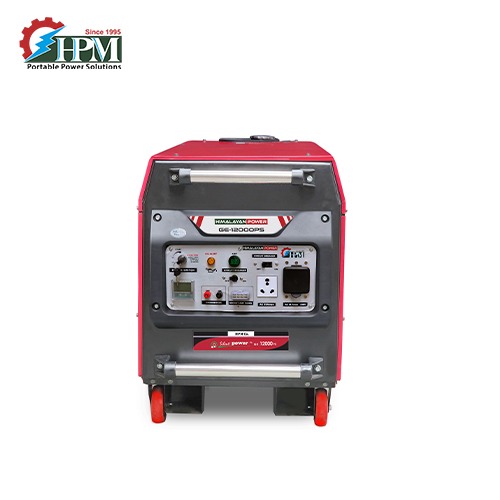

Panel & Other Standard Features

Digital V-HZ Hour Meter : Yes, Digital Meter Provided
Oil Alert System : Yes
LPG/ Gas Fuel Compatibility : Yes (Optional)
AMF Panel Compatle : No
Fuel Level Gauge : Yes
Overload Protection (NFB) : Yes
Costar Wheels : Yes

Size & Weight

Approx. Weight (Kg) : 50 KG
Dimension LxWxH (mm) : 990 x 530 x 710 mm
Battery Dimension in (mm): 12Volt 30 Ah

Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation
