4 KVA Petrol Inverter Generator , Model Oasis UL-40i-EV, Recoil Start

4 KVA Petrol Inverter Generator , Model Oasis UL-40i-EV, Recoil Start

( 14 Reviews )

₹ 139240.00 (incl Of all taxes)

₹ 118000 + 18 % Gst + Delivery to pay

~~₹ 146000~~

5% off

In Stock

About This Product

*Max AC. Output VA: 4000
*Rated AC. Output VA: 3800
DC Output : 5V-20V DC Panel
QC:3.0 USB Port
PD:3.0 Type C USB

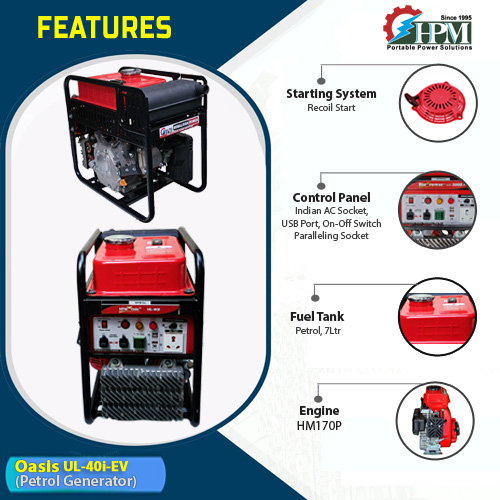

Starting System : Recoil Start
Fuel Consumption: Petrol 1.5 Ltr./Hr. / LPG: 850 Gm. Approx
Run time:5 hr. Approx
Pure Sine Wave
Paralleling AC Output : 8KVA (2 x UL-40i-EV)

Special Highlight :

4 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%
To get more Power to Run Heavy Equipment, 2 or More HP 40i Generator can be made to Run In Parallel, Two HP40i Generators in Parallel will produce 4 KVA + 4 KVA = 8KVA Power

Application :

Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, For charging Inverters, for all types of Frequency & Voltage sensitive Equipment’s, Military & Powering Defense Equipment’s Etc.

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Category: GENERATORS

Easy Return & Refund

Quality Assurance

Trusted Delivery

After Sales Assistance

Buyer Protection

*Max AC. Output VA : 4000
*Rated AC. Output VA : 3800
Rated Current Amps : 16.5
NFB Amps : 17
AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
Invertor : 100 KHz, IGBT Based Digital Invertor – 4 Kw

DC Outputs

DC Outputs - 5V to 20 V & DC Ports
USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
USB Output Fast Charging QC 3.0 (3) : 1* 5V... Show More

*Max AC. Output VA : 4000
*Rated AC. Output VA : 3800
Rated Current Amps : 16.5
NFB Amps : 17
AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
Invertor : 100 KHz, IGBT Based Digital Invertor – 4 Kw

DC Outputs

DC Outputs - 5V to 20 V & DC Ports
USB Output (1 to 2) : 2* 5V DC, 2.4 A (12W Per Port)
USB Output Fast Charging QC 3.0 (3) : 1* 5V - 12V DC (18W-Max) 5V3A, 9V 2A, 12V 1.5A
Type - C USB (4) : 1* 'C' Type - 1* USB C PD 2.0 (30W) 5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A

Engine

Model : HM170P
Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
Maximum Power : 6.5 HP @ 3600
Bore x Stroke : 70x58 mm
Displacement : 223 cc
Starting System : Recoil Start
Governor : Electronic Governor (Load Sensitive – Variable Speed) Engine RPM 2200 (No Load) to 3800 RPM (at Full load)
Fuel : Petrol or LPG (Optional)
Fuel Tank Capacity : Petrol -7 Ltr.
Fuel Consumption : Petrol 1.5 ltr/hr, Approx. LPG: 850gm
Lube. Oil Capacity : 600 ml.
Lubricating Oil Consumption : 2.5 gm./Hr.
Sound level (Db) (from 1 meter) : <86Db (as per CBCP - II Norms)
Continues Running (With One Filling) : 5 Hrs. Approx.

Panel & Other Standard Features

Multifunction Digital Meter & Indicator : Digital Control Panel (V, Hz, Amp)
Oil Alert System : Yes
Over Load Indicator : Yes
2 Genset Paralleling Capability : Yes, Red & Black Pair of Sockets Provided in Control Panel for Paralleling of 2 Generators
LPG/ Gas Fuel Compatibility : Yes
AMF Panel Auto & Remote Start Compatibility : Yes (Optional)
Fuel Level Gauge : Yes
AC On /Off, Overload Protection (NFB) : Yes
Electronic Over Load Protection : Yes, Inbuilt with Inverter

Packing

Weight Appprox (Kg) : 33 Kg
Dimension LxWxH (mm) : 532mm x 312mm x 525mm

Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation

Show Less

HIMALAYAN POWER MACHINE MFG. CO.

Part of Khasra No. 51 and 52 Ka, Village Kuanwala, Haridwar Road, Dehradun,

Uttarakhand – 248001

Warranty

Warranty Summary	*1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier
Service Type	Authorized Service Center or on Site by Visiting Service Engineer as Per Nature of Complaint
Covered in Warranty	*1 Year or 500 hrs standard manufacturing warranty on Engine and Alternator whichever is earlier
Not Covered in Warranty	NO WARRANTY ON PHYSICAL DAMAGES, ANY OF THE ELECTRONIC SPARES IN GENERATOR, AND EVERY DAY USABLE ITEM.
