10%OFF

5000VA Output ,UPS-Inverter

( 0 Reviews )

₹ 151536.00 (incl Of all taxes)

₹ 135300 + 12 % Gst + Delivery to pay

~~₹ 168100~~

10% off

In Stock

About This Product

Special Highlight

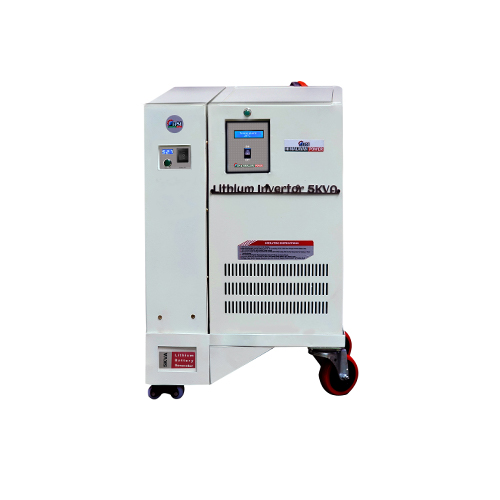

This is a Portable and Compact Lithium Inverter, It Runs 1.5 ton AC & Other Load Upto 5 KVA
Dual Use, AS Inverter Mode & UPS Mode

Application

Best stuitable for Home use, Shops, Offices, Coaching Centers, Insitutes, Computer Center, Gaming Center, Dental Clinics, Nursing Homes, Salons, Banks, Atms, LED Advertersing Vans, Food Vans, Ambulances, RTV /OBM Vans, Panetry Vans, Submersible Pump, All Computer & UPS Applications, Industrial Use, ETC.

This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.

Category: HIMALAYAN ALL ELECTRONIC PRODUCTS

Easy Return & Refund

Quality Assurance

Trusted Delivery

After Sales Assistance

Buyer Protection

Description
Reviews (0)

Battery

Cell Chemistry : LiFePo4 (LFP)
Cell Type : Blade Cell 3.2V-200Ah
Nominal Battery Voltage : Nominal Battery Voltage
Cell Configuration : 16S
Life Cycles : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
BMS (Battery Management System) : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
Shelf Life : Charge Every 3 - 6 Months

AC 230 Volt Output (Invertor AC Output Power)

Maximum ... Show More

Battery

Cell Chemistry : LiFePo4 (LFP)
Cell Type : Blade Cell 3.2V-200Ah
Nominal Battery Voltage : Nominal Battery Voltage
Cell Configuration : 16S
Life Cycles : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
BMS (Battery Management System) : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
Shelf Life : Charge Every 3 - 6 Months

AC 230 Volt Output (Invertor AC Output Power)

Maximum AC Output Power : 5000 VA
Rated Voltage & Type : AC - 230 V, 50Hz, Pure Sine Wave
THD : < 3% (Full R Load)
Power Factor : 0.8
Rated Current : 17.3 Amps
Over Load : 110% < Load <120% @ 40 Sec 120% < Load <150% @ 4 Sec
Power Less (No Load & Turned- Off) : < 10W
AC Output Back time @ 70% of rated load (VA) : ≥ 5 Hours
Max. Efficiency (>70% Load) : 85%
AC Output Socket (For Load Connection) : AC Output Socket (For Load Connection)

Control Panel / Charging Input & Other Standard Features

Battery Level / Capacity Indicators : Via LCD Display, Battery Switch On & Inverter Switch Off Position
Function Indicators : Fault Short Circuit Etc. / AC Output Volt / Mains Charging Amps / Load Percentage, Battery Voltage, Mains Voltage, Temprature, Overload, UPS / Inverter Mode
Over Load Buzzer : Yes (Beeps, at the Time of Overloadin)
Mode Selection - (UPS / Inverter) : UPS :-≤ 10 ms (Working Range 190V - 265V) Inverter :≥ 20 ms (Working Range 120V - 275V)
Mains Overload Protection (NFB) : Yes (26 Amps)

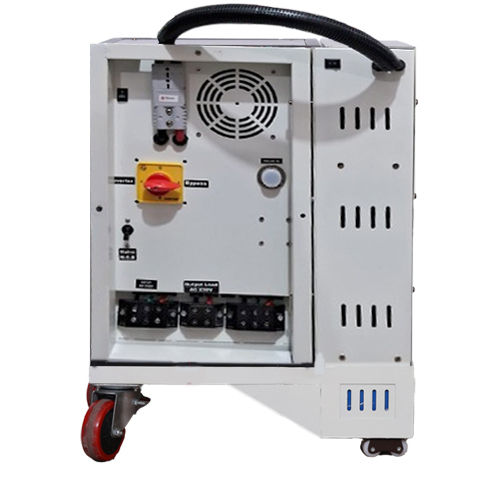

Inverter Bypass : Yes (By Rotory Switch)
AC Inbuilt Charger (Charging From Grid Power) (AC input 120V to 275V) : External 32 Amps EU type AC Socket and Plug Provided for Grid Connection Chraging Rate 20 Amps Charging Time > 10 Hours
Solar Panel Connection / Compatibility : Yes, 2 Pin Input Metal Socket Provided on Control Panel Recommended Minimum Solar Panel : 220Watt - 23V * 3Series
Fast Charging Portable Petrol Engine Charger Himalayan Model : BC-5080A : 50V - 80 Amps (4000 Watt Maximum ) Charging time Approx 2.5 Hr for 80% Charging
Costar Wheels : Yes
Heat Disipation : Twin AC Cooling Fan
IP Rate : IP 55 Protected from Water Spary < 15˚From Vertical

Working Condition

Charge Temperature : 0˚C ~ 45˚C
Operating Usage Temp. : -10˚C ~ 40˚C
Operation Storage Humidity : 5% ~ 90%
Warranty : 5 Year on Battery & 1 Year for Complete Product (Solar Power Station)
Package Contents : 1* UPS-5000W Lithium Inverter , 1* User Manual , 1 Set Solar Pannel 220Watt - 23V * 3Series (Optional)

Show Less
