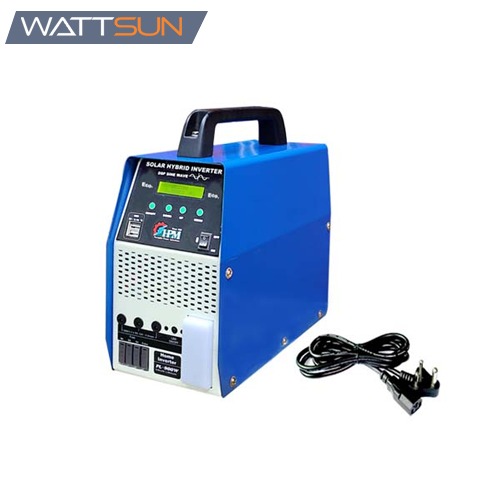

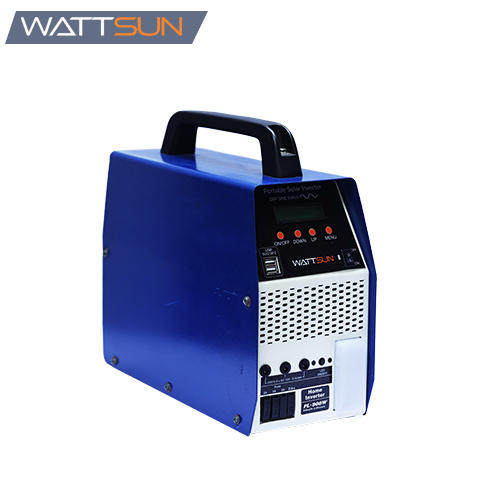

60Ah, 1 kva Portable Inverter for Home with Inbuilt Lithium Battery, PL-900W-ECO
₹ 23128.00 (incl Of all taxes)
₹ 19600 + 18 % Gst + Delivery to pay
₹ 29575
In Stock
About This Product
- Battery : Lithium Iron Phosphate LiFePo4
- Rated Power Output : 900VA
- Voltage & Type : AC - 230 V, 50Hz, Pure Sine Wave
- DC - Output : 12V- Cigarette Lighter Socket
- Other DC Outputs : 5V to 20 V & DC Ports
Charging Input Power (4 Way of Recharge) :
- AC Inbuilt Charger
- Solar Panel PV Charge
- Car Charge Input (From Cigarette Socket)
- LPG / Petrol Genset Charger
Application
Due to Big Lithium Battery (60Ah), It has Long Backup hence more useful for home use in case of Power cuts. It support by 240 Watt MPPT Solar Panel for Quick Charging of Battery. It is Portable and Can also Carried for Outdoor Fields Jobs, Shop and Commercial Appliactions
Descripton
- This is a Portable multifunctional Lithium Battery UPS Inverter.
- This inverter gives AC 230V output & also 2* DC-5V for smartphone charging & 4* 12V DC output for running 12V DC appliances. This 900 Inverter Model has a inbuilt 15W High Power LED Light.
- The main advantage of this solar inverter is that, it is a UPS, Hence it can supply Main AC 230V to home appliances & when main power fails, the home load automatically shift over to Battery Inverter Power.
- This is a lightweight Portable Power Inverter & can be used at Household & as well can be carried away anywhere for outdoor/ field power applications.
- This inverter has a big Lithium Power Pack of 12.8V-60AH
The Lithium Battery of this Solar Invertor can be charged by any of the 4 ways :
- 1) AC 230 V mains (Grid Power) Inbuilt 13A-150Watt fast charger
- 2) Car charging through C.G Port in running car 150W.(C.G Load provided)
- 3) Charging with Solar Panel 200W (Optional)
- 4) Battery can be expanded(optional).
The Remaining Battery Power can be judged through its LCD Display.
This Premium product is the Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is a more than 25-year company that offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
- Battery: Lithium Iron Phosphate LiFePo4
- Cell Type : Prismatic 3.2 V- 60 AH
- Battery Voltage : 12.8 V (4S)
- Peak Capacity : 12.8V - 60 AH (768 Wh)
- Life Cycles : ≥ 1500 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
- BMS (Battery Management System) : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
- Battery Expansion : Yes, Expandable, can Add 1 Pack 12.8V - 60 AH
- Shelf Life : Charge Every 3 - 6 Months
AC 230 Volt Output (Invertor Power Supply)
- Continues Rated Power Output : 900 VA
- Peak Output Power : 950 VA
- Voltage & Type :Show More
- Battery: Lithium Iron Phosphate LiFePo4
- Cell Type : Prismatic 3.2 V- 60 AH
- Battery Voltage : 12.8 V (4S)
- Peak Capacity : 12.8V - 60 AH (768 Wh)
- Life Cycles : ≥ 1500 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
- BMS (Battery Management System) : Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
- Battery Expansion : Yes, Expandable, can Add 1 Pack 12.8V - 60 AH
- Shelf Life : Charge Every 3 - 6 Months
AC 230 Volt Output (Invertor Power Supply)
- Continues Rated Power Output : 900 VA
- Peak Output Power : 950 VA
- Voltage & Type : AC - 230 V,50Hz, Pure Sine Wave
- THD : < 3% (Full R Load)
- Power Factor : 0.9
- Over Load : 116% < Load <150% @ 2min / 150% < Load <200% @ 10 S
- Power Less (No Load & Turned- Off) : < 10W
- AC Output Back time @ 70% of rated load (VA) : < 2 Hours
- Max. Effecient (>70% Load) : 90%
- Output Socket : Indian Version AC Socket x 1(US/UK/EU/AU Socket)
DC - Output- 12V- Cigarette Lighter Socket
- Output Voltage : 12.8 ± 1 V
- Continous Output Current : 12 A (Max. 150 Watt)
- DC Output Over Load Current Protection : Yes >13 A (Through Fuse Provided in C.G Pin)
- DC Output ShortCircuit Protection : Yes (Disconnect Load Recovery)
Other DC Outputs - 5V to 20 V & DC Ports
- USB Output (2) : 2* 5V DC, 2.4 A (12W Per Port)
- 12V DC -DC 5521 (3 Ports) : 2 x 12V, 5A-60 W Each (5.5mm x 2.1 mm)
- USB & DC Over Load Current Protection : Yes
- USB & DC Output short Circuit Protection : Yes (Disconnect Load Recovery)
- Illumination / LED Flash Lighting : 1 * 15W (High Bright).
Indicators in Panel
- Battery Level / Status Indicators : LCD Display
- Function Indicators : Fault / AC Output / Mains Charging /Modes/ Load Percentage,Battery Voltage, Mains Voltage, temprature
Charging Input Power (4 Way of Recharge)
- AC Inbuilt Charger (Charging From Grid Power) (AC input 120V to 275V) : AC - DC Adapter (CC/CV) - 8mm Port 15V-13A (180 Watt Max.) Charging Time > 5 Hours
- Solar Panel PV Charge : MPPT Solar Panel - 15V / 15 Amps - Max 240 W, Charging Time 4 - 5 Hours
- Car Charge Input (From Cigarette Socket) : 12 - 14V, 10 Amps Max. Charging Time 6- 7 Hours
- LPG / Petrol Genset Charger : 15 V - 30 Amps (500 Watts Maximum) Charging time < 2 Hr.
Heat Disipation : Air Cooling (Fan), Aluminium Housing
IP Rate : IP 32 Protected from Water Spary < 15˚From Vertical
Working Condition
- Charge Temperature : 0˚C ~ 45˚C
- Operating Usage Temp. : -10˚C ~ 45˚C
- Operation Storage Humidity : 5% ~ 90%
Product Size & Weight
- Dimensions (LxWxH) : 165*400*350 mm
- Net Weight : 18.5kg
Package Contents :
- 1* 900 VA Portable Lithium Power Inverter
- 1* Car Charger (Cigarette Lighter Cable) (Optional)
- 1* 3 pin Mains AC Cord
- 1* User Manual

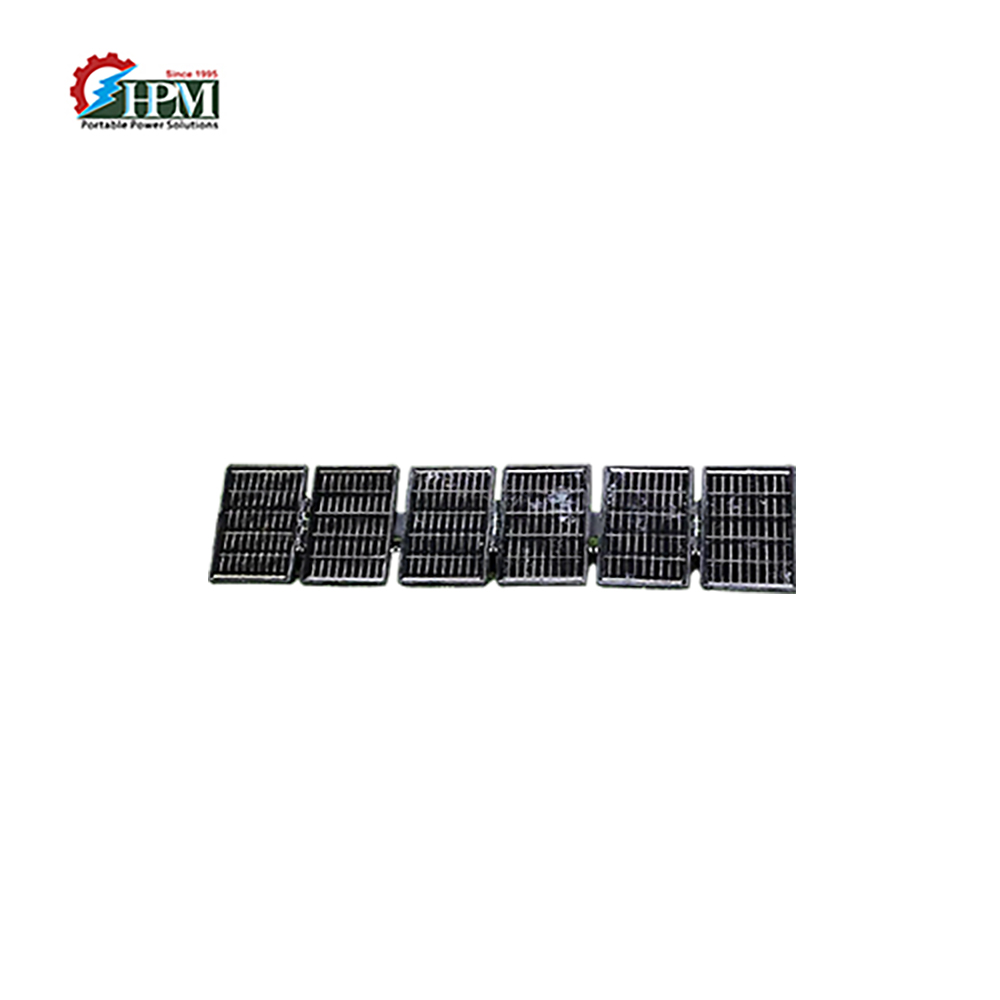

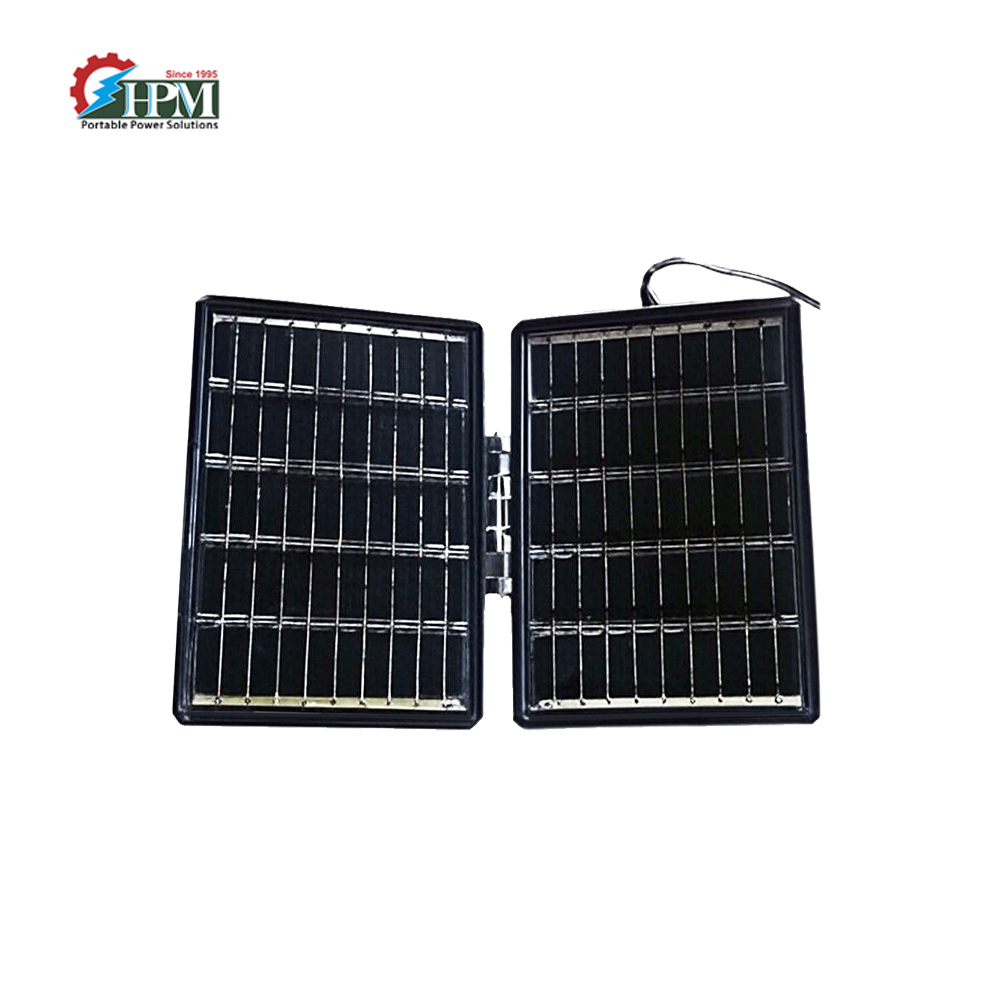

- MPTT Solar Pannel 240 Watt (Optional)
