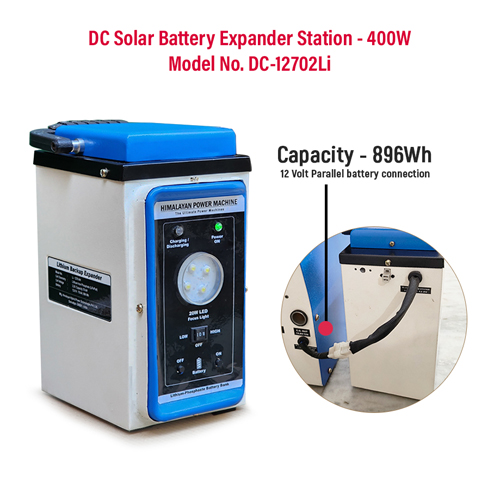

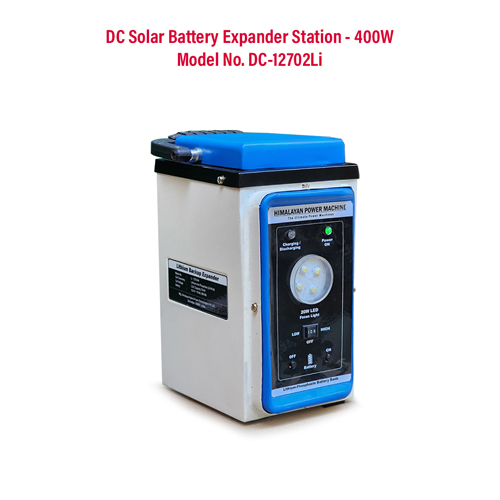

70Ah-12.8V , Inverter Lithium Battery for Home Inverter, (Lithium Iron Phosphate, LiFePo4) Backup Expander

• Battery: Lithium Iron Phosphate LiFePo4
• Cell Type: Prismatic 3.2 V- 70 AH
• Battery Voltage: 12.8 V (4S)
• Peak Capacity : 12.8V - 70 AH (896 Wh)
• Life Cycles: ≥ 1500 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
• BMS (Battery Management System): Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
• Shelf Life : Charge Every  3 - 6 Months

DC - Output- 12V- Cigarette Lighter Socket

• Output Voltage : 12.8 ± 1 V
• Continous Output Current : 12 A (Max. 150 Watt)
• DC Output Over Load Current Protection : Yes >13 A (Through Fuse Provided in C.G Pin)
• DC Output ShortCircuit Protection : Yes (Disconnect Load Recovery)

• Other DC Outputs - 5V to 20 V & DC Ports
• Illumination /  2 mode LED Flash Lighting : 1 * 15W (High Bright).

Panel Indicators

• Charging Indicators : Solar Energy / Mains AC 230V / Engine charger Separate Indicators for Each Charging Source
• Battery 'ON - OFF' Indiactor: Indicator Glows if Battery is Active

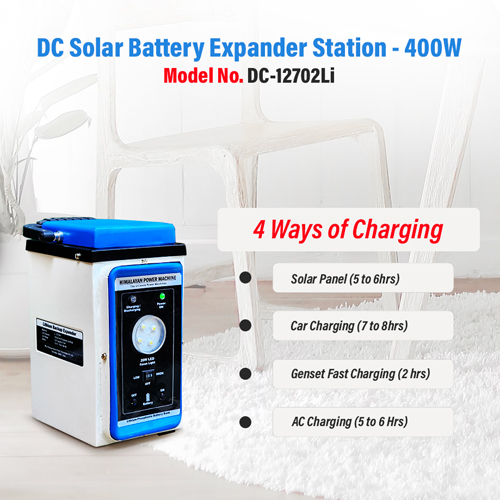

DC - Charging Input Power (4 Way of Recharge)

1. AC Wall Charger (Charging From Grid Power) (AC input 120V to 275V): AC - DC Adapter (CC/CV) - 15V-12Amps (150 Watt Max.) (Inbuilt) Charging Time > 6 Hours
2. Solar Panel PV Charge (MPPT): 18V - 15Amps - Max 240 W, Charging Time 5-6 Hours
3. Car Charge Input (From Cigarette Socket): 14.5V, 10 Amps Max. Charging Time 7 - 8 Hours
4. LPG / Petrol Genset Charger : 15 V - 30 Amps (500 Watts) Charging time  <  2.5 Hr.

• Natural Air Cooling , Metal Housing
• IP Rate : IP 32 Protected from Water Spary < 15˚From Vertical

Working Condition:

• Charge Temperature : 0˚C ~ 45˚C
• Operating Usage Temp. : -10˚C ~ 45˚C
• Operation Storage Humidity : 5% ~ 90%

Product Size & Weight:

• Dimensions (LxWxH) : 210*220*320 mm
• Net Weight : 10.9kg
• Warranty : 3 Year on Battery * & 1 Year for Complete Product  (DC Solar Battery Expander Station)

Package Contents:

1. DC Solar Battery Expander Station - 400W
2. 1* Car Charger (Cigarette Lighter Cable)
3. 1* DC - Solar Charging Cable
4. Solar Panel 240 Watt with MPPT (Optional)
